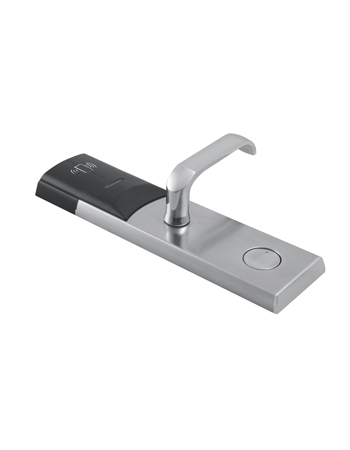

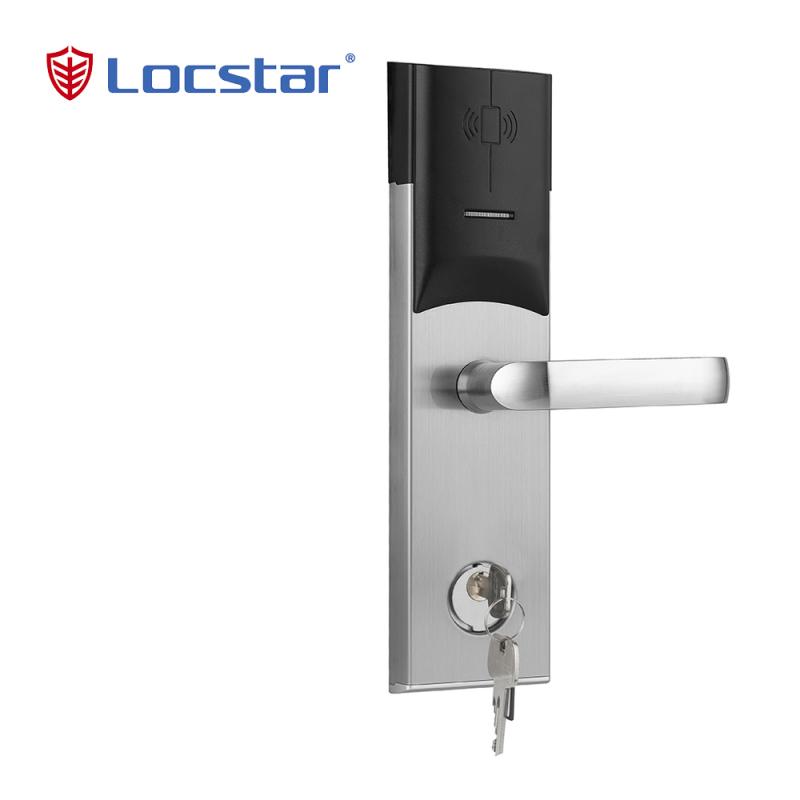

Hotel door lock system using rfid card

stainless steel hotel door locks With mifare card

  • ITEM NO:

    LS-8088-RFID
  • Unlocking ways:

    RFID card +mechnical key
  • Material:

    SUS304
  • Certificate:

    FCC,CE
  • Mortise:

    8#ANSI , 9#Euro
  • Color:

    Silver , Golden
  • Warranty:

    2years
  • Payment term:

    T/T,Western Union,Paypal
  • Weight:

    2.9Kg
  • Product Detail
  • Technical Parameters
  • Other Information

LS-8088 stainless steel hotel lock is made for the IC lock hotel upgrading renovation,easily change the IC lock into RF lock,which has been widely used in 7-Days Inn and HOME INN(>100,000 room)in China hotel inn market.
 1. Unlocking by RFID card + mechanical key in emergency
 2. Support card type: Temic T5557 card, 125KHz or M1fare S50 card, 13.56MHz
 3. Material: SUS304 stainless steel
 4. Powered by 4pcs AA Alkaline battery
 5. Battery life: approx 1 year
 6. Low voltage alarm
 7. Door ajar alert
 8. DND (Do not disturb) function available
 9. Management classification: support 14 types of cards including authorization card, clock card, room number setting card, master card, emergency card, floor card, building card, guest card, temporary card, house keeping card, alarm card, no-disturbing card etc
 10. Hidden cylinder
 11. Hotel locking system includes: hotel locking software, encoder, RF card, energy saving switch, data collector, click to get more information about Hotel smart door lock system.
 12. Warranty: 2 years, lifetime maintenance
 13. Hotel software interface with other PMS (API / SDK can be provided)
 14. Front panel size:W77.1*H293*D65.1mm,back panel size:W76.5*H242*D66mm
hotel card reader door locks

LS-8088 electronic hotel lock technical parameter:

Lock type

RF card lock

Electronic key

NXP Mifare One S50

ATMEL T5557

Mifare card

Temic card

International Standard

ISO14443-A

ISO11784/785

Static current

≤25uA

≤15uA

Dynamic current

≤200uA

Power Supply

4×AA

Low―voltage Index

5.0V(±0.2)

Battery life

≥10000times

Mechanical life

≥100000times

Reliability

≥30000times

Weight

3.0Kg

Working temperature

-20℃~55℃

Storage temperature

-30℃ ~ 70℃

Working humidity

15%RH ~ 90%RH




Mortise:



1.8# ANSI standard,five lock tongue three linkage lock body







2.9# Euro stand,five lock tongue three linkage lock body











Packing:

 Each piece packed in white box
 6PCS/CTN
 17~19kg/CTN
 Carton size: L410 x W340 x H510 (mm)
 Volumes: 0.07 m3 / ctn
