Wireless mifare card hotel room door locks

LS-8099 is a nice design and very popular all over the world

  • ITEM NO:

    LS-8099-RFID
  • Unlocking ways:

    RFID card +mechnical key
  • Material:

    Stainless steel
  • Certificate:

    FCC,CE
  • Mortise:

    8#Euro 9#ANSI
  • Color:

    Silver
  • Warranty:

    2years
  • Payment term:

    T/T,Western Union,Paypal
  • Weight:

    2.9Kg
  • Product Detail
  • Technical Parameters
  • Other Information

hotel card reader door locks are Suitable for small to very large scale hotels
Easily replaces existing mechanical or electronic door locks
Access control for guest rooms, common areas, and building access

 1. Unlocking by RFID card + mechanical key in emergency

 2. Support card type: M1fare S50 card, 13.56MHz

 3. Material: stainless steel

 4. Powered by 4pcs AA Alkaline battery

 5. Low voltage alarm

 6. Door ajar alert

 7. Hidden cylinder

 8. External power poles in case out of power

 9. Warranty: 2 years, lifetime maintenance

 10. Free hotel software, free SDK to interface with the PMS

 11. Front panel size:W76.5*H291.1*D30.4mm,back panel size:W76.5*H242*D66mm

LS-8099 contactless hotel  locks technical parameter:



Card type

RF ID card

Card frequency

Mifare One S50 card

Reading Distance

2CM

Power Supply

4×AA

Low―voltage Index

4.8V(±0.2)

Battery life

 ≥10000times

Mechanical life

≥100000times

Reliability

≥30000times

Mechanical life

≥100000times

Static current

≤20uA

Dynamic current

<200mA

Working temperature

-20~55

Storage temperature

-30 ~ 70

Working humidity

15%RH ~ 93%RH

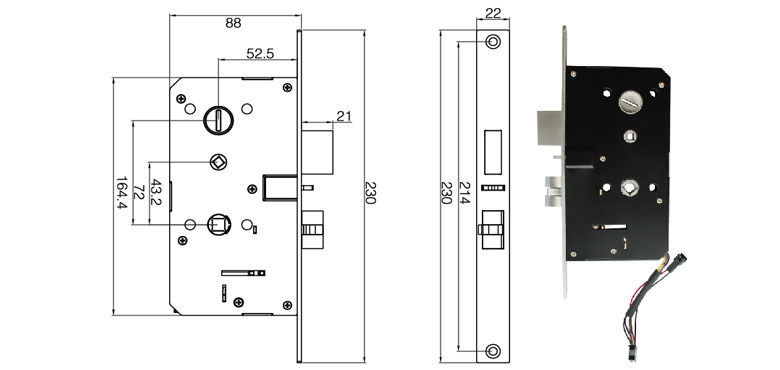

Mortise:

1.8# ANSI standard,five latch, deadbolt function, high security, change the battery from back panel. (it replaces Vingcard lock directly)











2.9# Euro stand,five lock tongue three linkage lock body





Packing:

 Each piece packed in white box
 6PCS/CTN
 17~19kg/CTN
 Carton size: L410 x W340 x H510 (mm)
 Volumes: 0.07 m3 / ctn
