Brand:
LocstarItem no.:
LS-8009ITEM NO:
LS-8009-RFIDUnlocking ways:
RFID card +mechnical keyMaterial:
SUS304Certificate:
FCC,CEMortise:
8#ANSI , 9#EuroColor:
Silver , GoldenWarranty:
2yearsPayment term:
T/T,Western Union,PaypalWeight:
2.9Kg
LS-8088 electronic hotel lock technical parameter:
| Lock type | MF card Hotel lock | Static current | <40uA |
| Unlock way | Mifare s50 card (13.56MHZ)+Mechanical key | Dynamic current | s150mA |
| Material | Stailess steel both panels+ stailess steel mortise latch+ Alloy Key | Working temperature | -20-55°C |
| Power supply | 4xAA Alkaline battery | Working humidity | 16%RH-93%RH |
| Battery life | Around 10000 times(More than one year) | Unlock record | Record 800pcs recentunlock message |
| Mortise life | Around 200.000 times | Low voltage alarm |
5.0V+(0.2V)(lock willremind you tochange battery, thattime can support atleast 100 timesunlocking.) |
| Door thickness | 38-60mm |

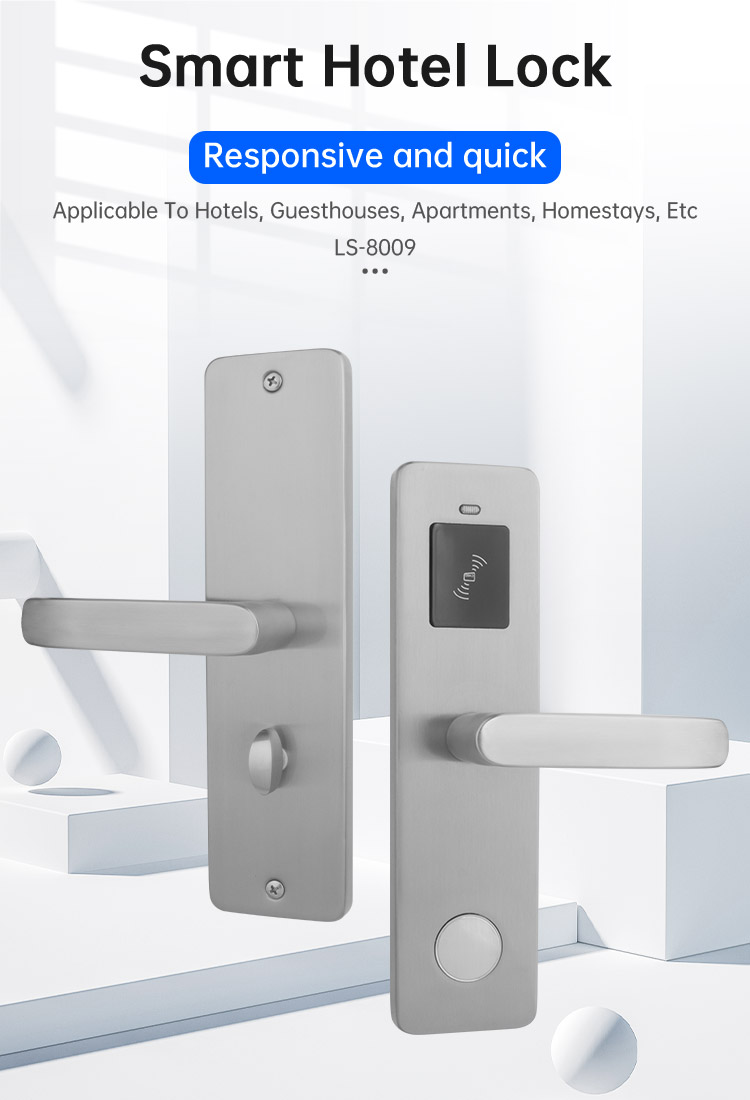

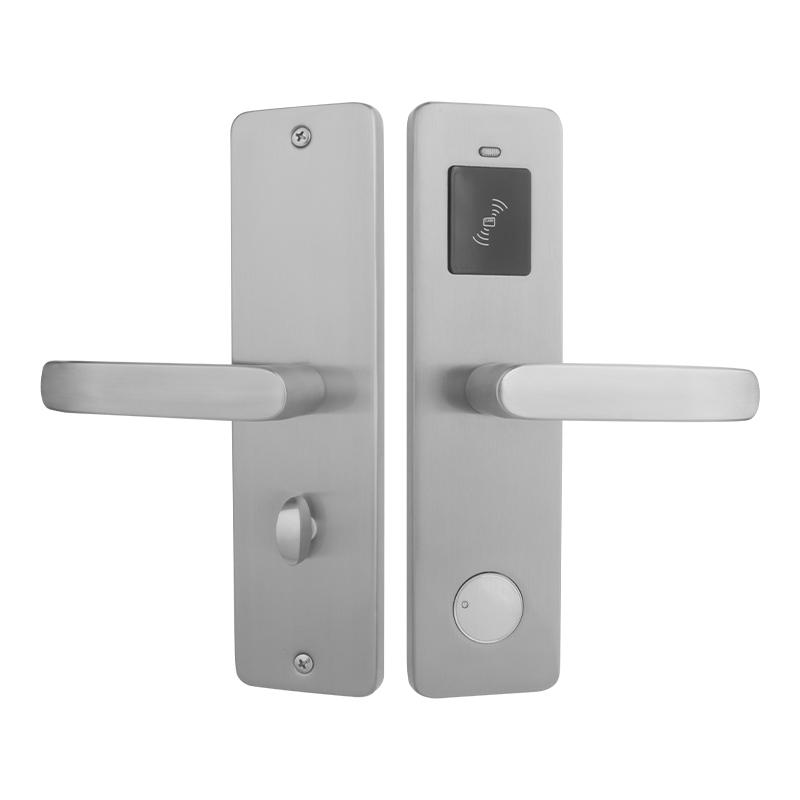

LCOSTAR hotel lock(LS-8009),can unlock by key card and mechanical key. support different management requirement, such as building card/floor card/maid zoon card management/ foreman card/front desk card and so on. also supply full set accessories to work together, encoder/energy saver/printing card/data collector.

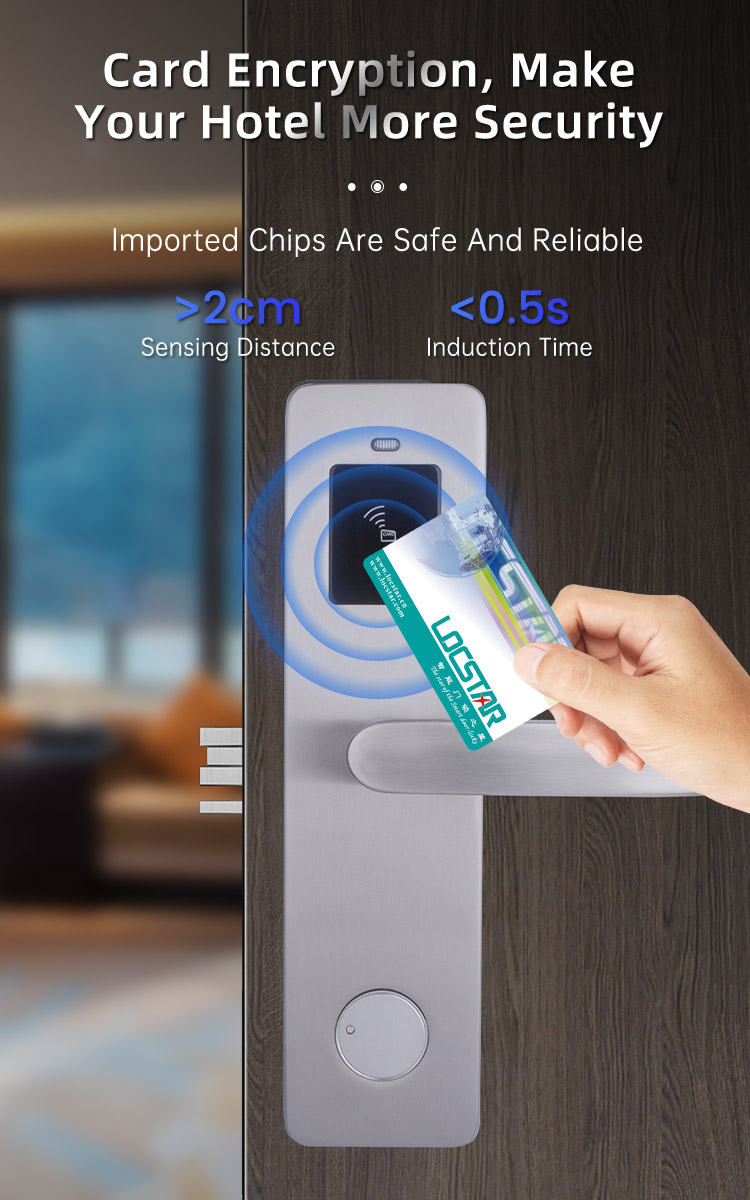

1. Unlocking by RFID card + mechanical key in emergency
2. Support card type: Temic T5557 card, 125KHz or M1fare S50 card, 13.56MHz
3. Material: SUS304 stainless steel
4. Powered by 4pcs AA Alkaline battery，Battery life: approx 1 year
5. Low voltage alarm， Door ajar alert
6. DND (Do not disturb) function available
7. Management classification: support 14 types of cards including authorization card, clock card, room number setting card, master card, emergency card, floor card, building card, guest card, temporary card, house keeping card, alarm card, no-disturbing card etc

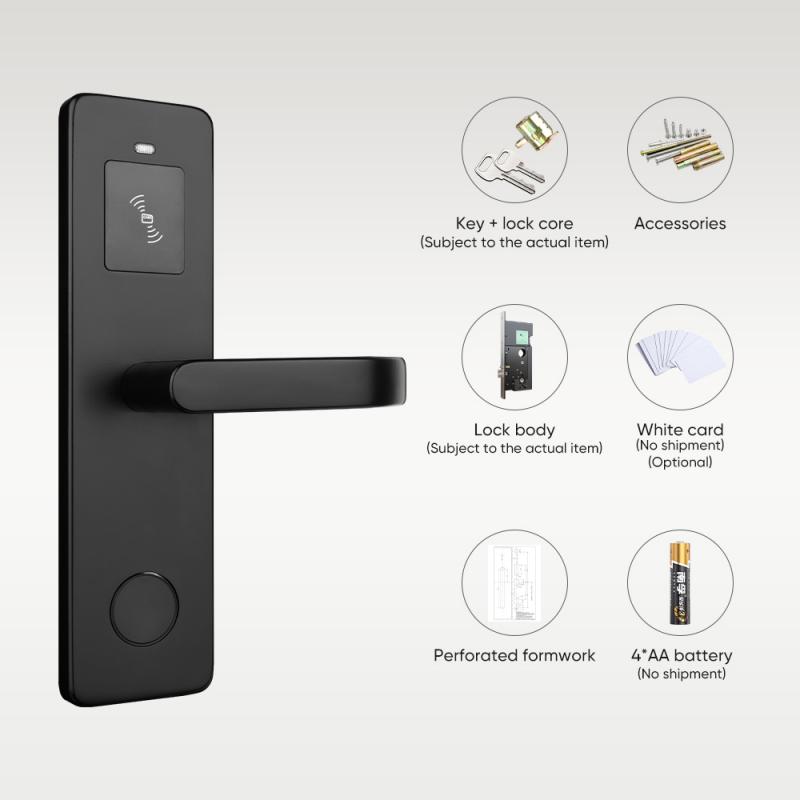

8. Hotel locking system includes: hotel locking software, encoder, RF card, energy saving switch, data collector, click to get more information about Hotel smart door lock system.
9. Hotel software interface with other PMS (API / SDK can be provided)，Future proof re-programmable FL .ASH RAM lock memory.

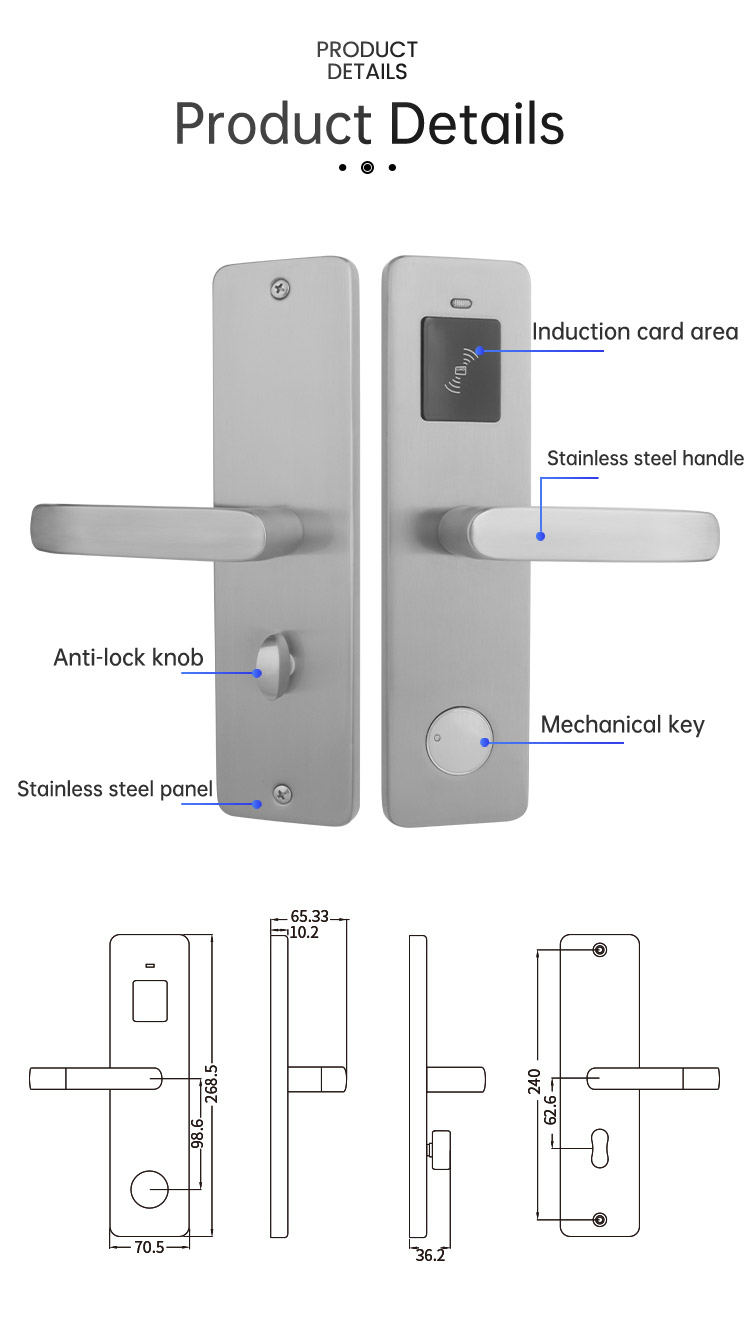

10. Front panel size:W77.1*H293*D65.1mm,back panel size:W76.5*H242*D66mm
11. Stand alone electronic lock with RFID technology.
12. High security stainless steel mortise lockcase available in ANSI, AUS and EURO versions.

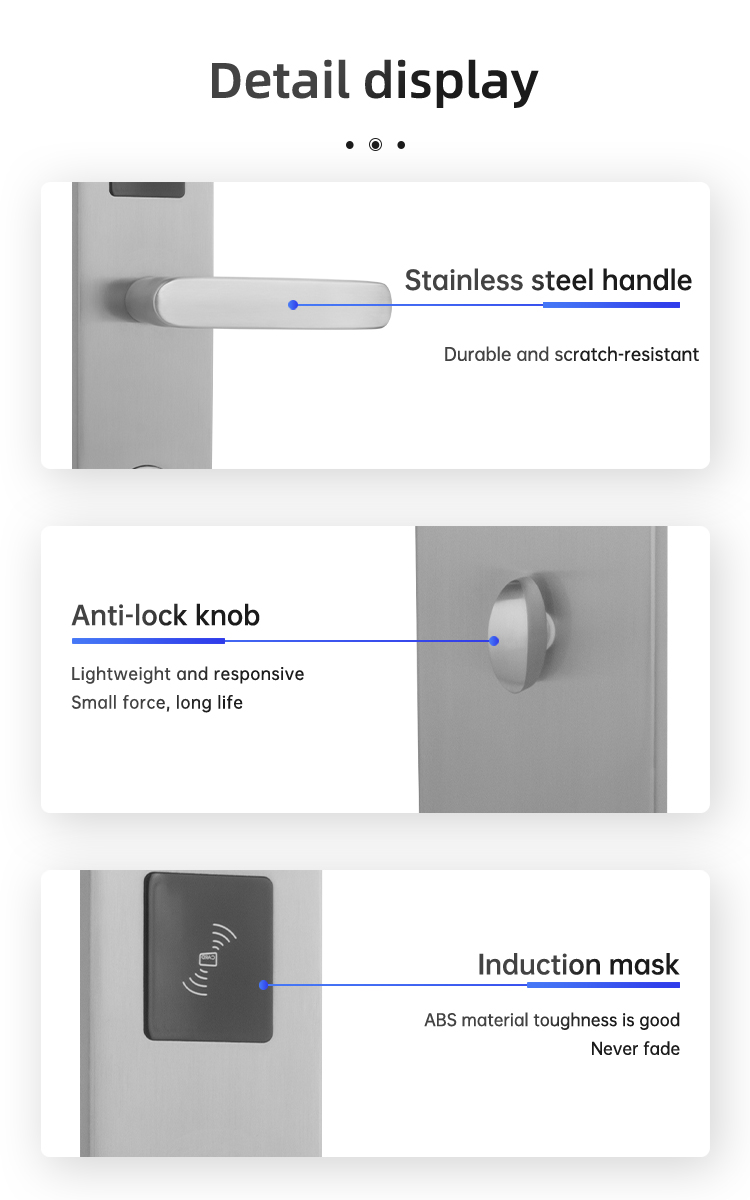

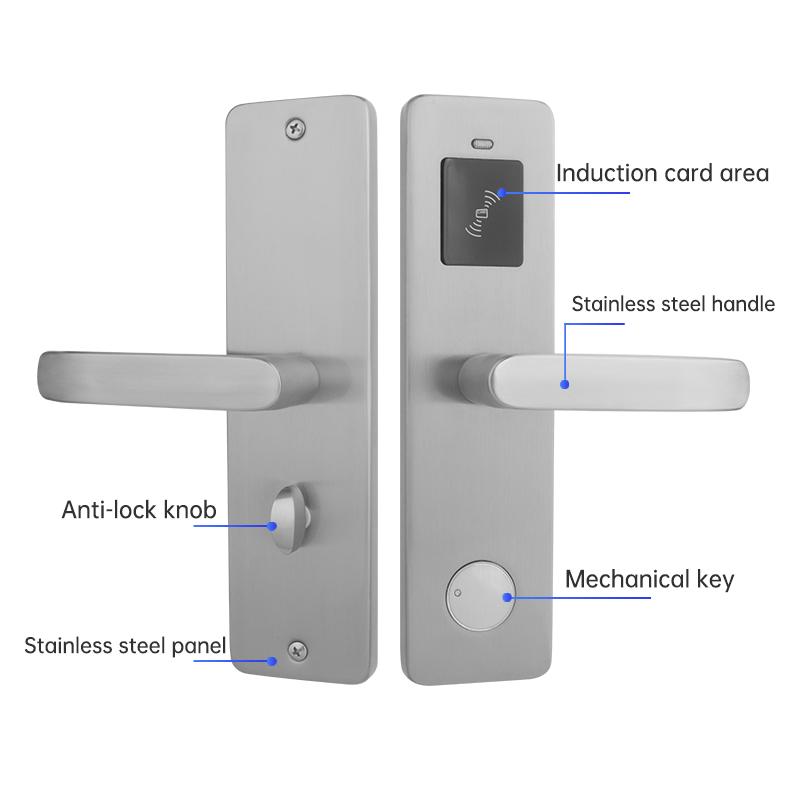

13. Hidden cylinder,Stainless steel handle with brushed surface.3-point stainless steel latch construction with anti friction mechanism.
14. Mortise equipped 20mm throw high strength deadbolt.
15. Panic release function - the deadbolt and latch are automatically retracted by inside handle for easy regress in emergency situation.
16. ADA compliant (guest with physical disabilities).
17. Warranty: 2 years, lifetime maintenance

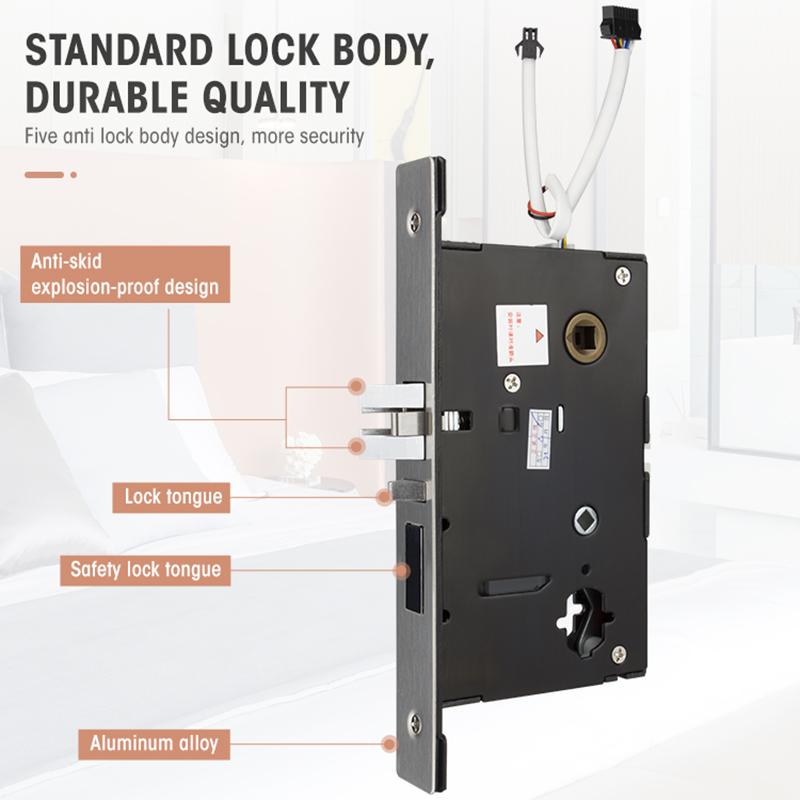

Mortise:
1.8# ANSI standard,five lock tongue three linkage lock body
2.9# Euro stand,five lock tongue three linkage lock body
Packing:
Each piece packed in white box
6PCS/CTN
17~19kg/CTN
Carton size: L410 x W340 x H510 (mm)
Volumes: 0.07 m3 / ctn
