Glass Door Access Control System Installation

Nov 19 , 2021

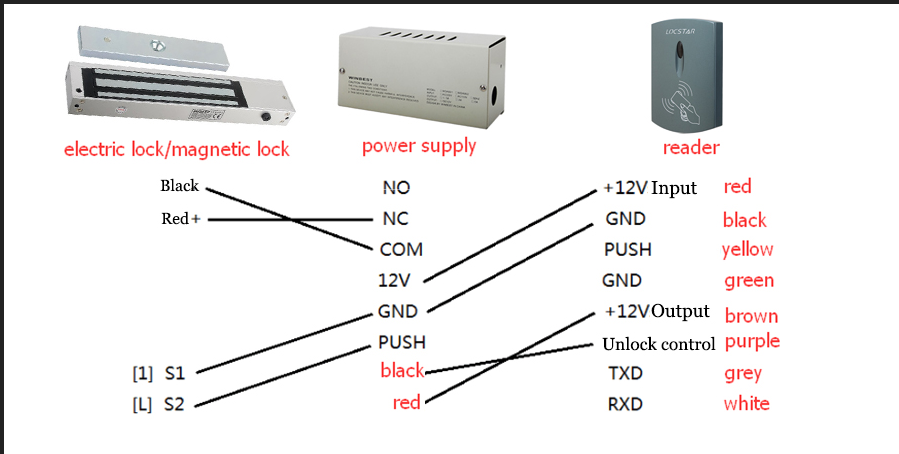

Glass Door Access Control System Installation




A. Install A card reader at the entrance.  Do not approach  high frequency or strong magnetic field (such as heavy load motor, monitor, etc.) within the sensor range of the card reader, and need to cooperate with Power cable grounding mode for the control box.

B. Install the door opening button at the exit.

C. The electromagnetic lock is installed on the upper edge of the door and the door frame.

D. In order to ensure safety and aesthetics, the controller and power box can be installed on site or installed in a battery box.  The advantage of field installation of the controller is to save the use of wire, the controller is installed in the battery box to facilitate the future maintenance of the system and the safety of the system, and the controller box can also be installed above the card reader, close to the electromagnetic lock. The installation mode can be selected based on the customer's requirements.
