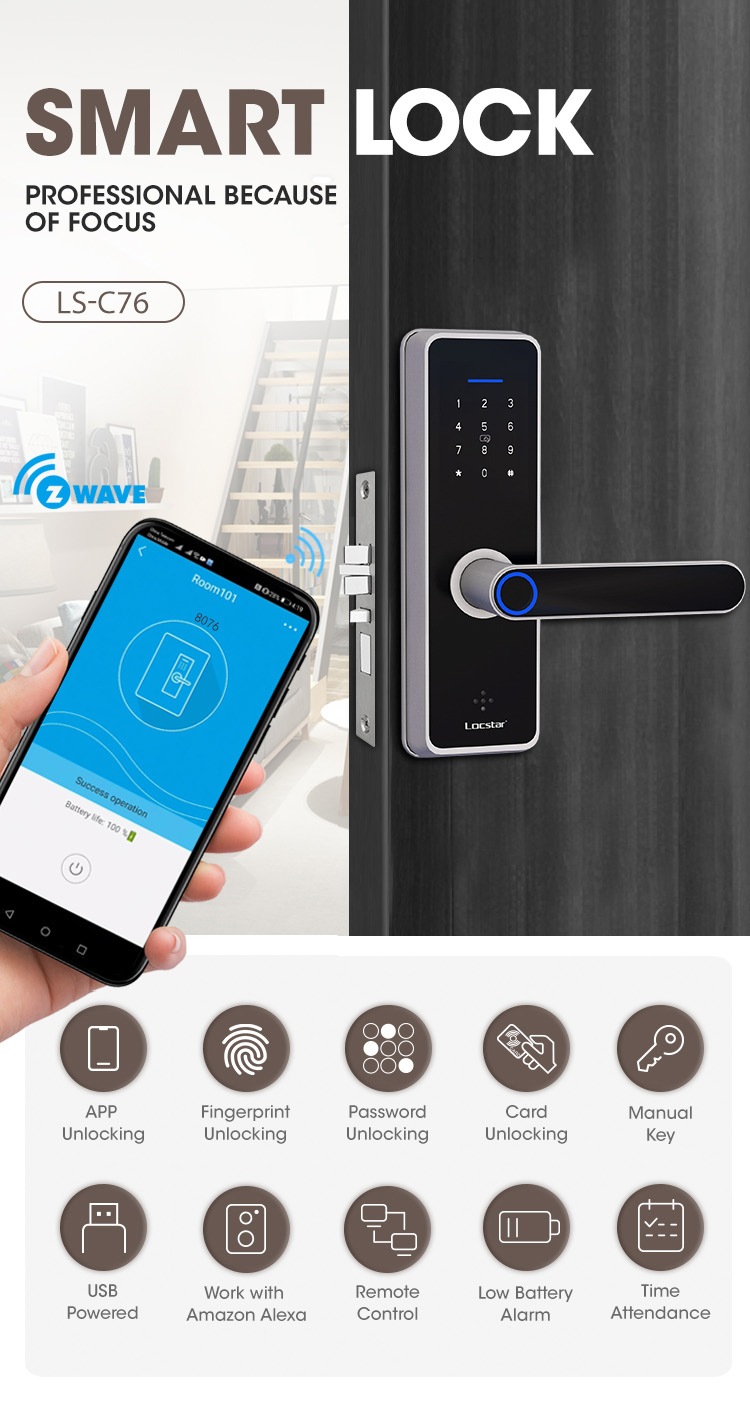

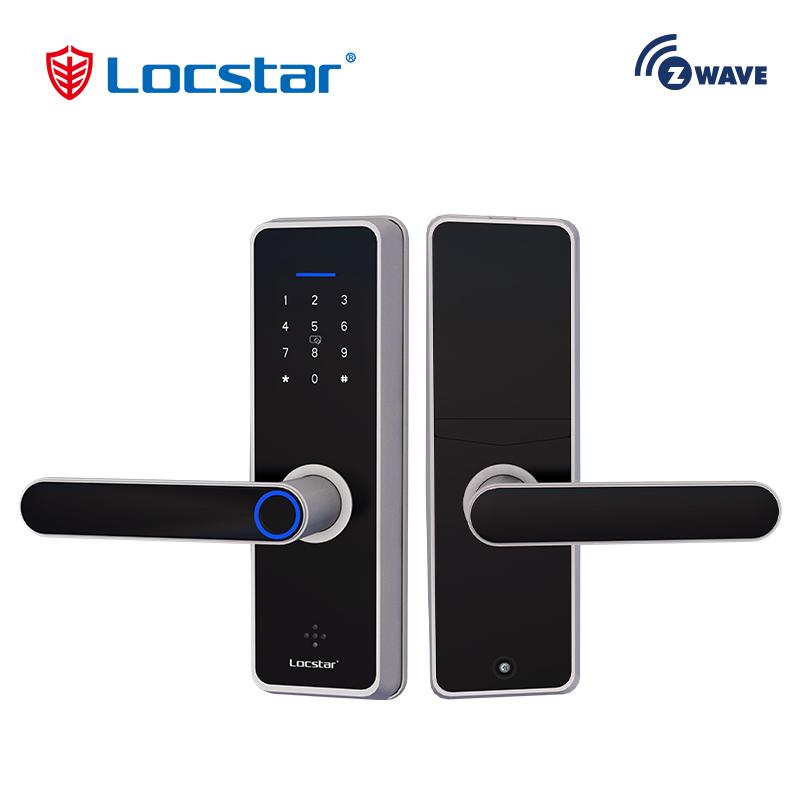

Z wave wifi smart electronic locks

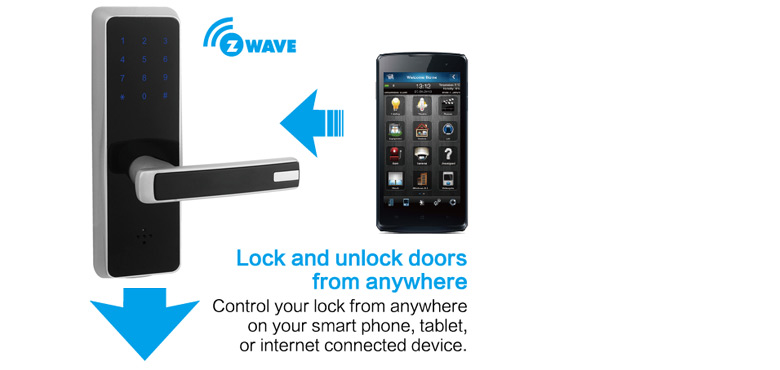

Control you lock from anywhere on your smart phone,tablet or internet connected device

  • ITEM NO:

    LS-8076-Z wave
  • Unlocking ways:

    Mobil APP+Card+Code +mechnical key
  • Material:

    Zinc alloy
  • Certificate:

    FCC,CE
  • Mortise:

    DS 9500
  • Color:

    Silver
  • Warranty:

    2years
  • Payment term:

    T/T,Western Union,Paypal

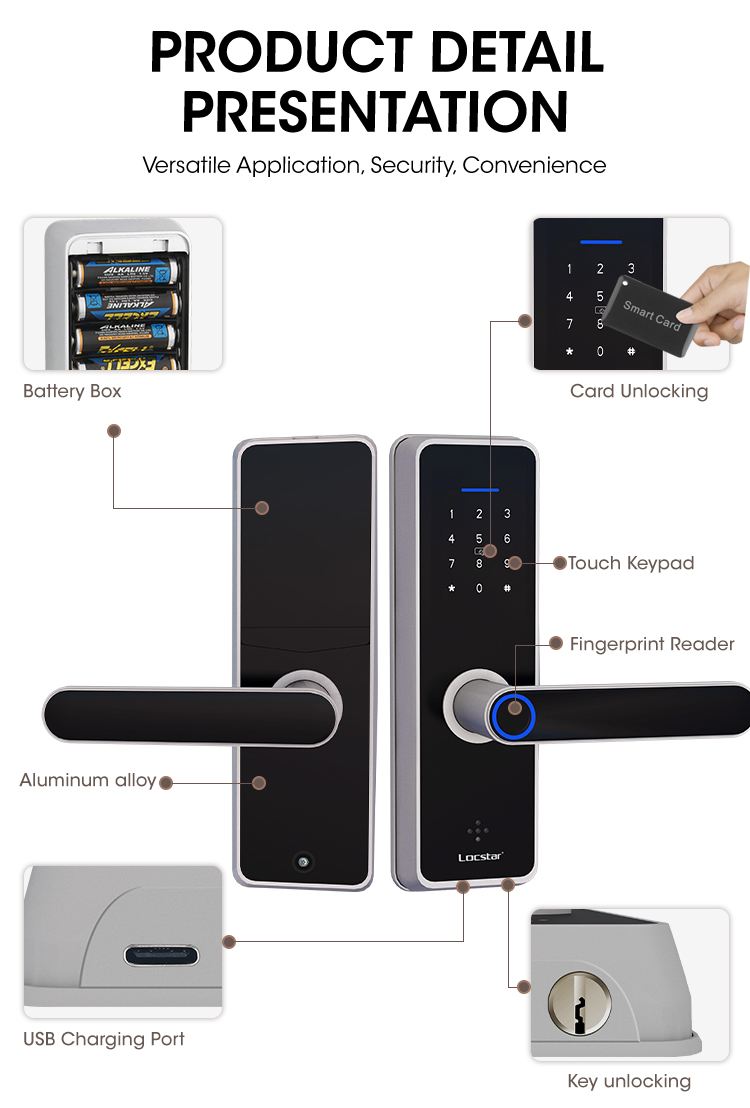

  • Product Detail
  • Technical Parameters
  • Other Information

******* Clearance sale in September, welcome to purchase and inquire *******



AES 128 bits encryption for zwave lock--Check lock status remotely to see if doors are locked by Mobile App freely,the transmission signal has been encryted by AES 128 bits with high security.

Easy replacement for inner door--It does not require you to change your existing inner door latch bolt.within 10 minutes you will be able to retrofit our product to your latch bolt.

Self-locking protection--Lock shuts down after 5 time attempts and return to the standard program in 3 min.

Shedule setting--You can set the opening time according to the user ID NO.

Quick and simple programming--Programming made easy and compatible all zwave network.

Emergency power supplier--When the batteries are compeletly discharged,you can easily supply emergency power to the lock with the standard 9V battery.

Low battery indicator--It warms with alarm and LED in the event of low batter.

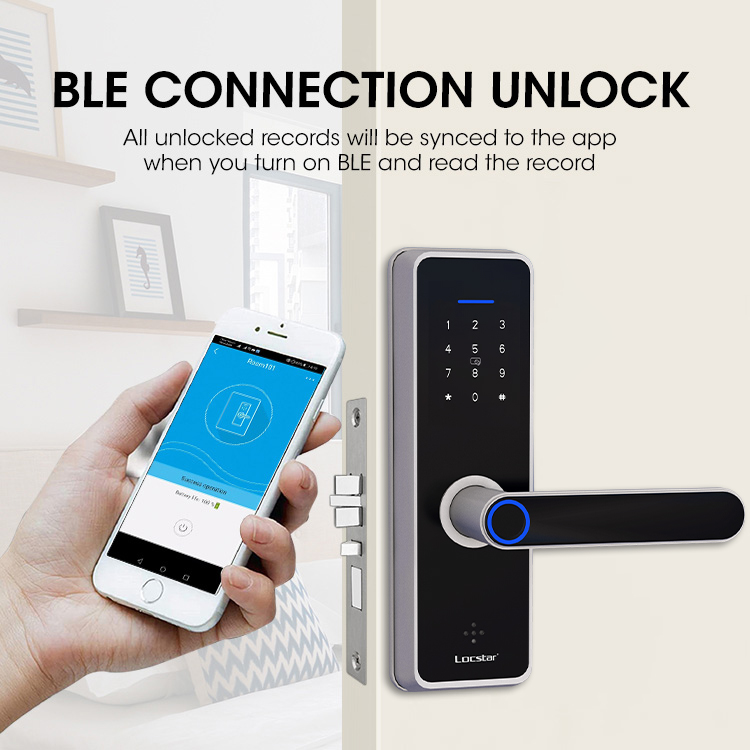

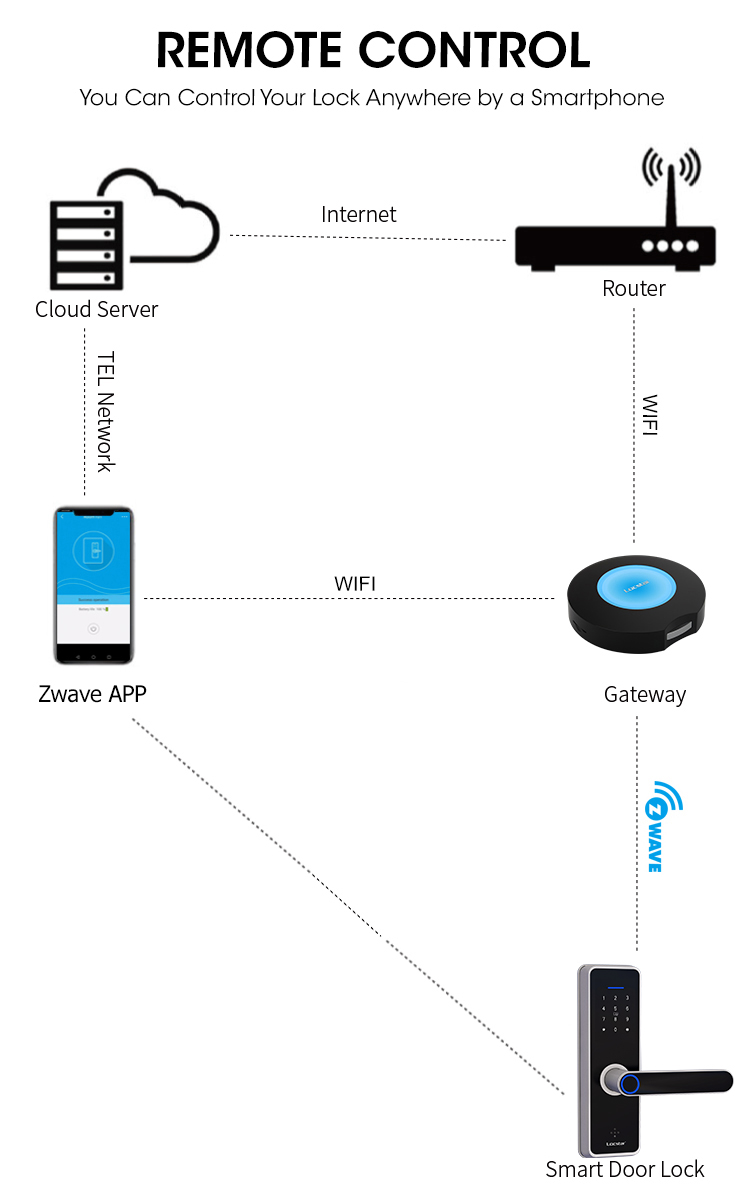

1. Operated through smart phone /computer over APP to control the lock from anywhere

 2. Works with the gateway / hub aslong as it uses standard Zwave protocol, works with popular gateway such asMicasa, Fibaro etc. (Gateway not included)

3. Zwave frequency available:908.42MHz (US), 868.42MHz (EU), 921.42MHz (AUS)

4. Unlocking way: Zwave command +card + code + key

5. User capacity: 100 users code,add / delete individual users

6. Auto lock in 5S 6.Passage mode available, press “*”for temporary lock, after unlocked again, it keeps unlocking.

7. Unlocking record.

8. Get notified when the lock isunlocked (unlocked by mechanical key can’t be notified)

9. Create code for the user from APP (it depends on if the gateway support the function)

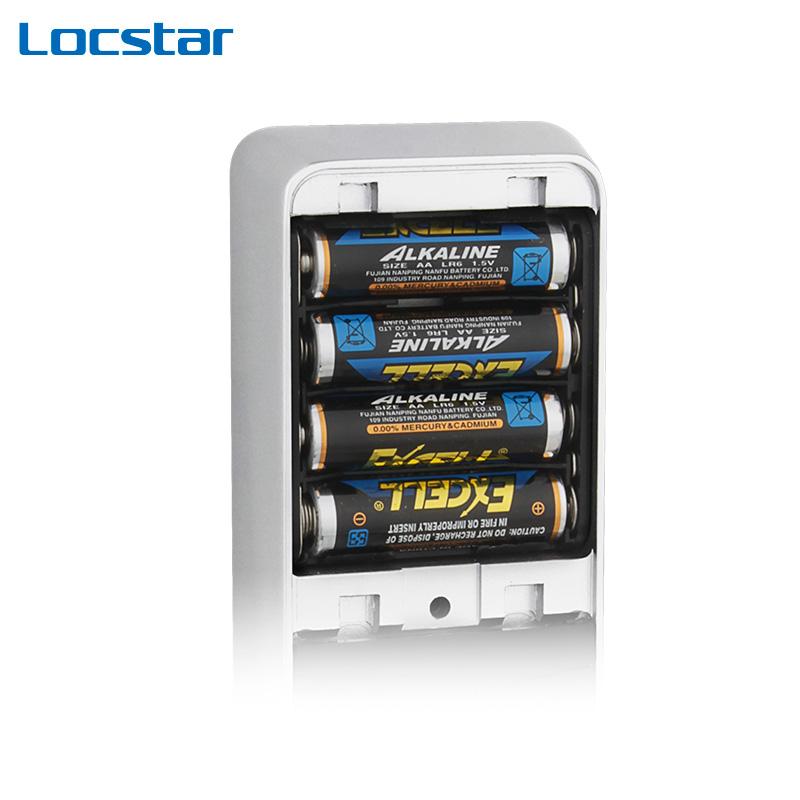

10. Powered by 4pcs AA Alkalinebattery

11. Reversible lock handle

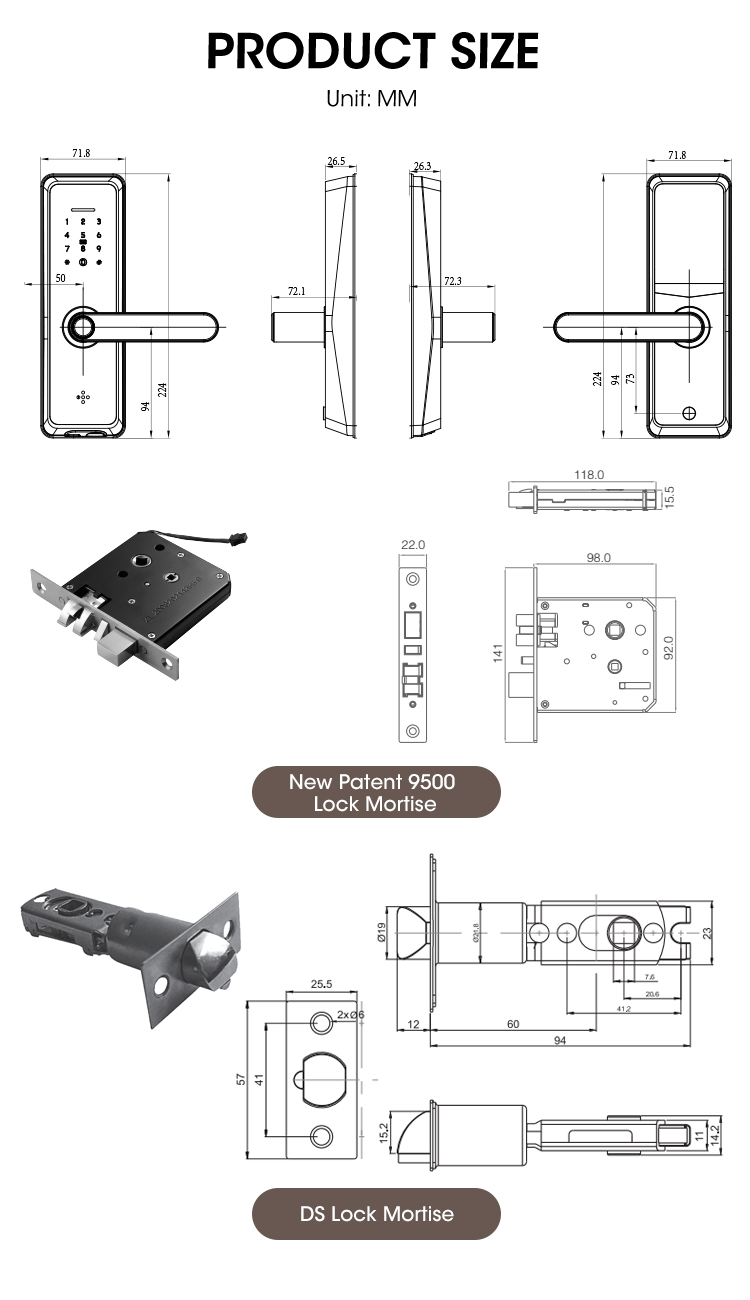

12. Panel size:W67.8×H220×D79.2mm



Application:

1.Home Automation

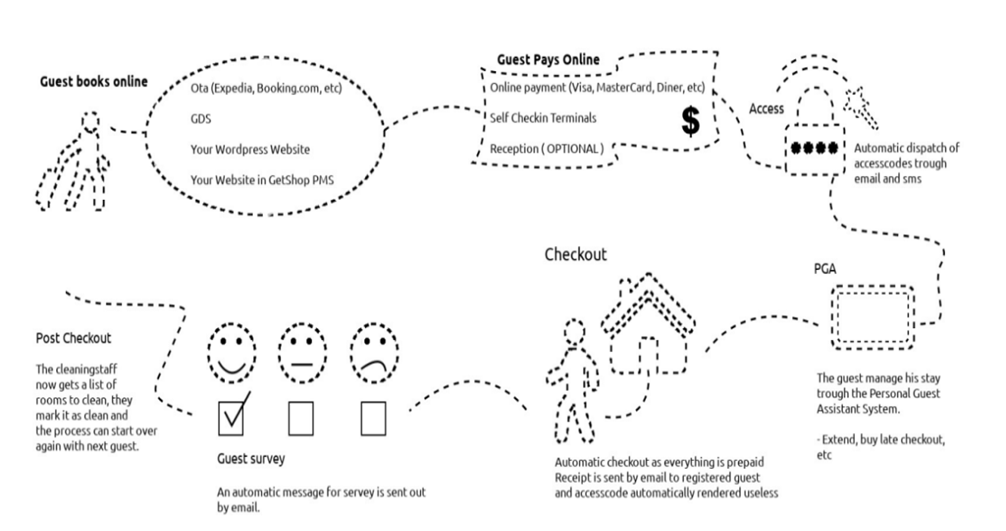

2.Automated Hotel System



LS-8076-MM wifi Zwave locks technical parameter:



Card type Mifare One S50
Card capacity     100Pcs
Code capacity 100Pcs
Card frequency 13.56MHZ
Reading distance 1.5CM

Power Supply

4×AA

Low―voltage Index

5.0V(±0.2)

Battery life

1 year

Static current

≤120uA

Dynamic current

<200mA

Working temperature

-20~55

Storage temperature

-30 ~ 70

Working humidity

15%RH ~ 93%RH

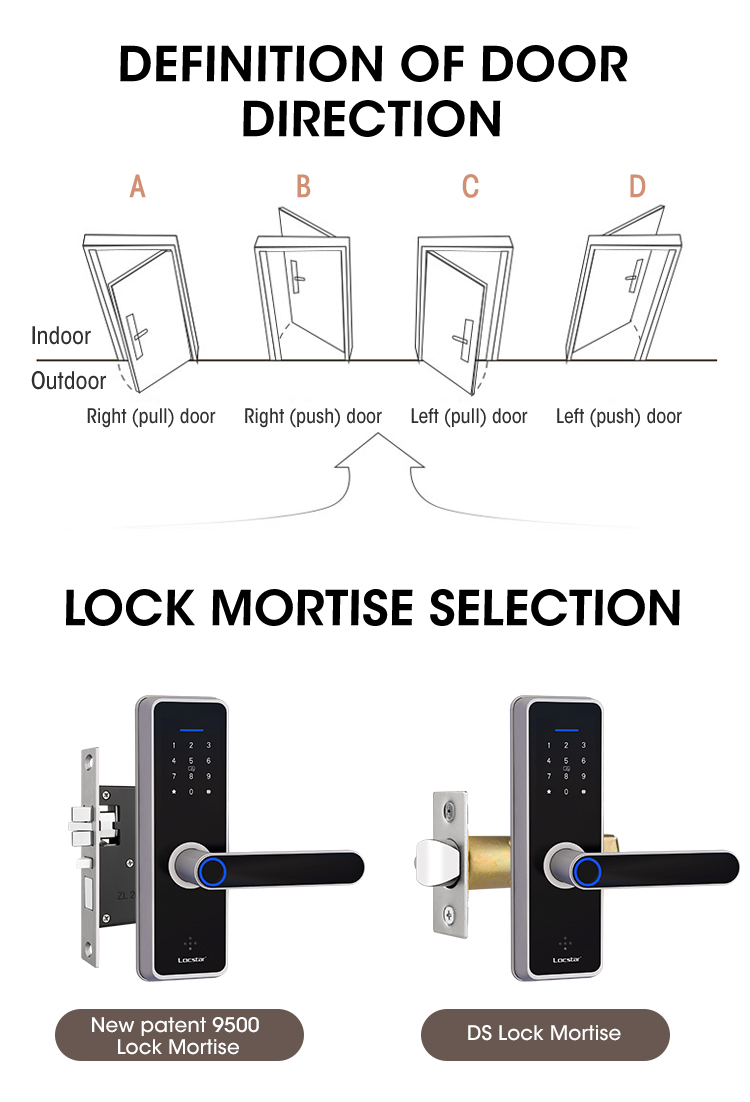

Mortise:

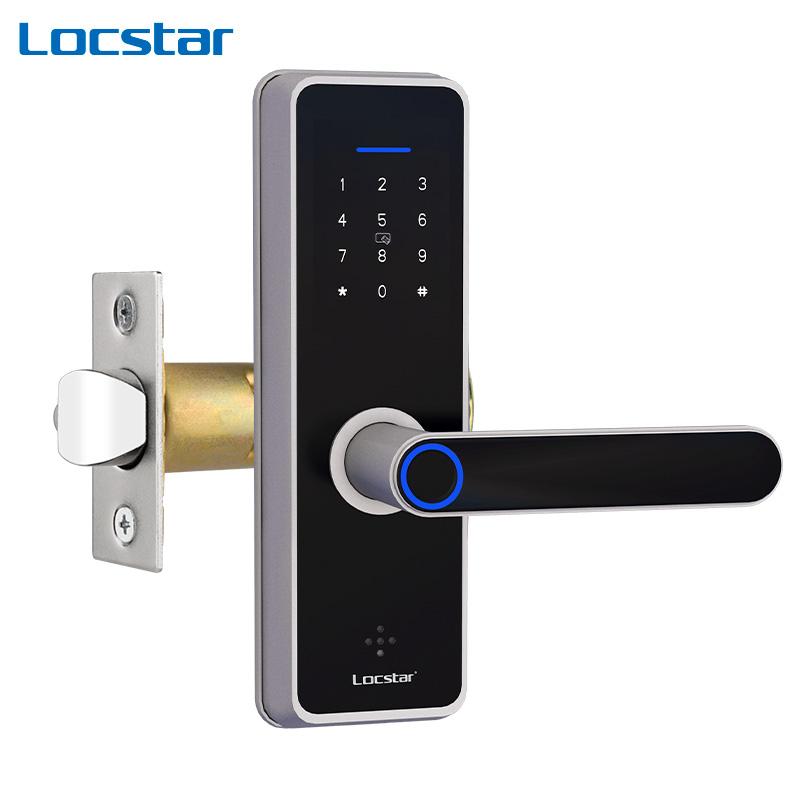

1.Single latch---DIY,easy to install or renovate,the knob lock hotel could be upgraded without drilling any extra hole

Single latch

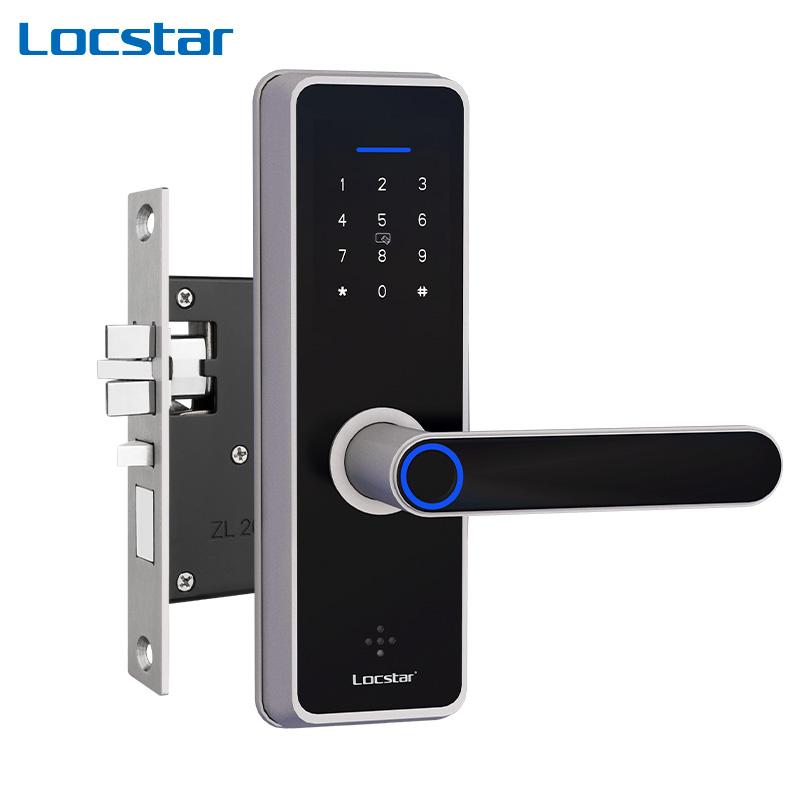

2.Five latches--deadbolt function more sercurity

Five latches mortise



Packing:

 Each piece packed in white box
 8PCS/CTN
 17~19kg/CTN
 Carton size: L495 x W440 x H265 (mm)
 Volumes: 0.0577 m3 / ctn
office door lock
