Electronic Digital Door Lock

Hotel Lock

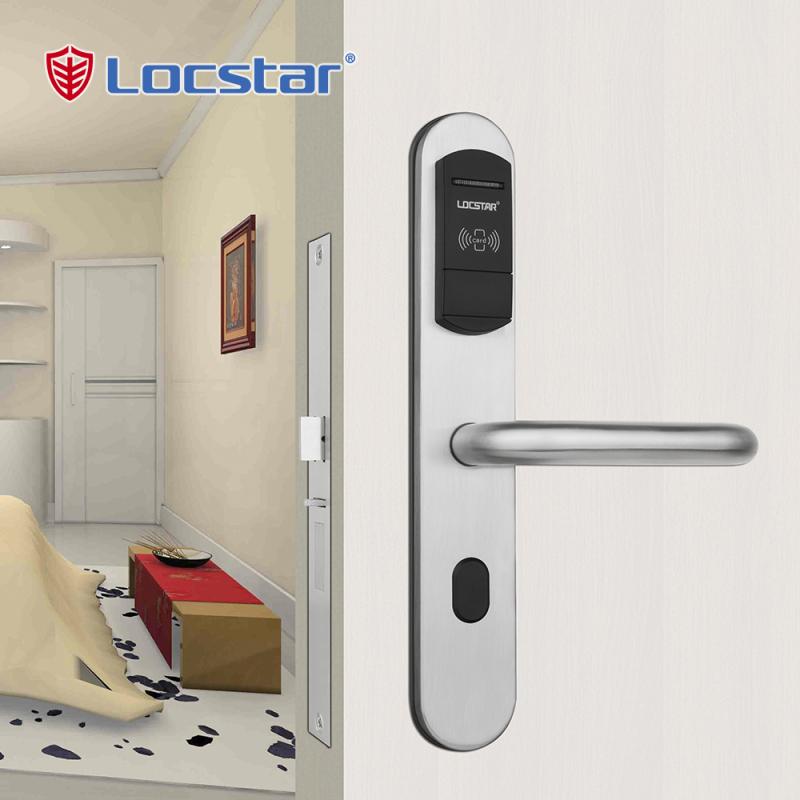

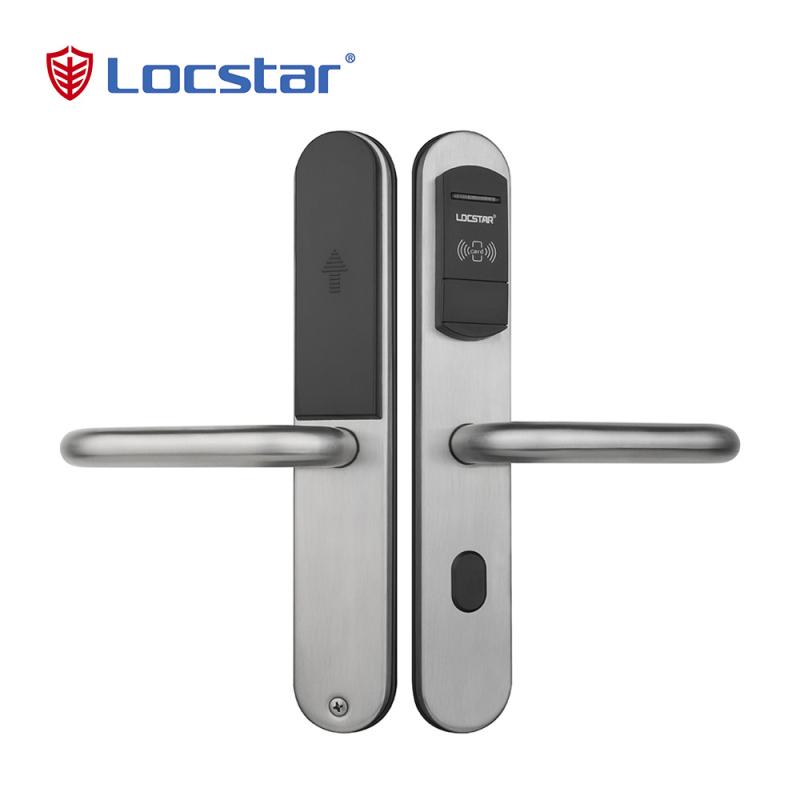

Smart card hotel locks with Euro mortise

LS-8103 electronic mortise locks suitable for Narrow frame door and PVD door using
  • ITEM NO:

    LS-8103-RFID
  • Unlocking ways:

    RFID card +mechnical key
  • Material:

    SUS304
  • Certificate:

    FCC,CE
  • Mortise:

    9#Euro
  • Color:

    Silver
  • Warranty:

    2years
  • Payment term:

    T/T,Western Union,Paypal
  • product detail
  • technical parameters
  • other information

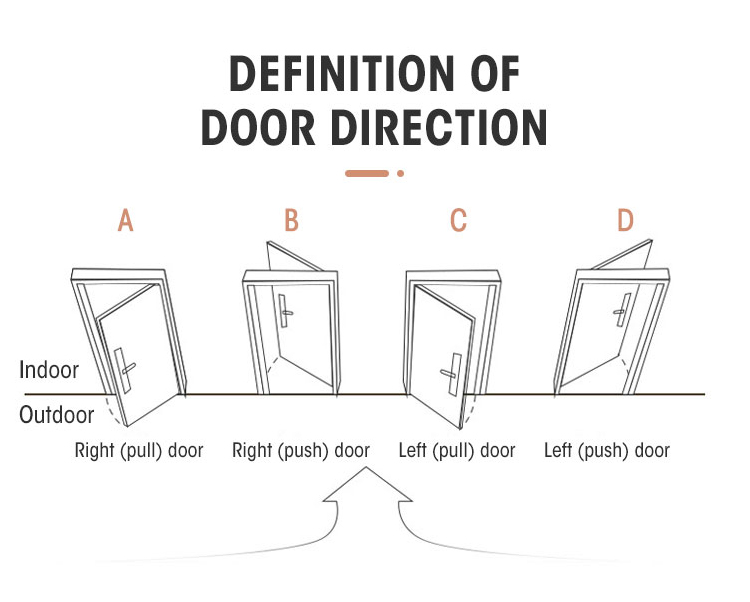

SUS304 material casting molding,damage proof structure design,suibale for Narrow frame door and PVD door using,Euro standard mortise,turn left and right freely

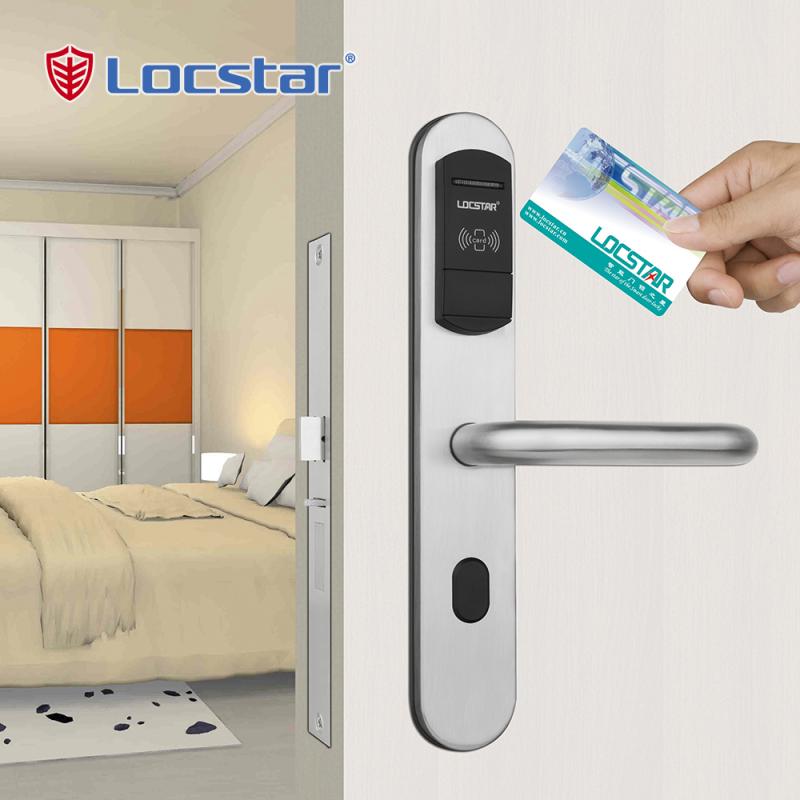

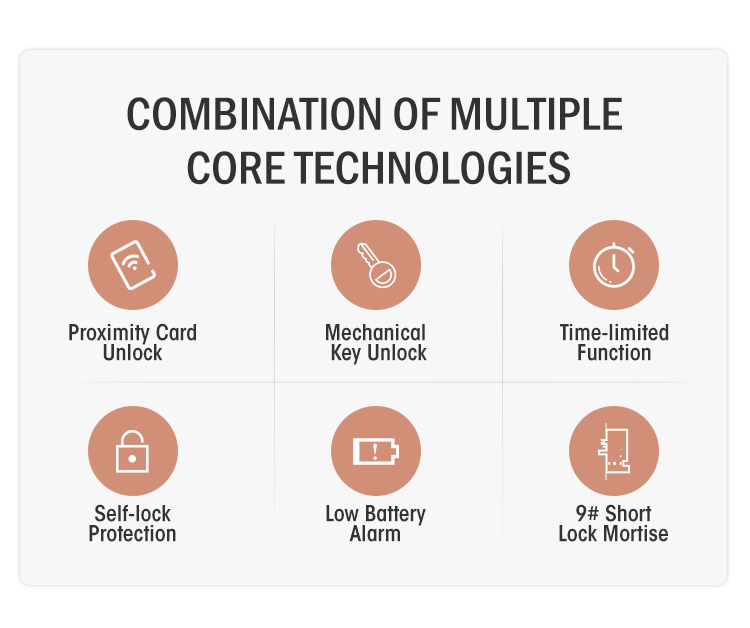

 1. Unlocking by RFID card + mechanical key in emergency

 2. Support card type: M1fare S50 card, 13.56MHz

 3. Material: SUS304 stainless steel

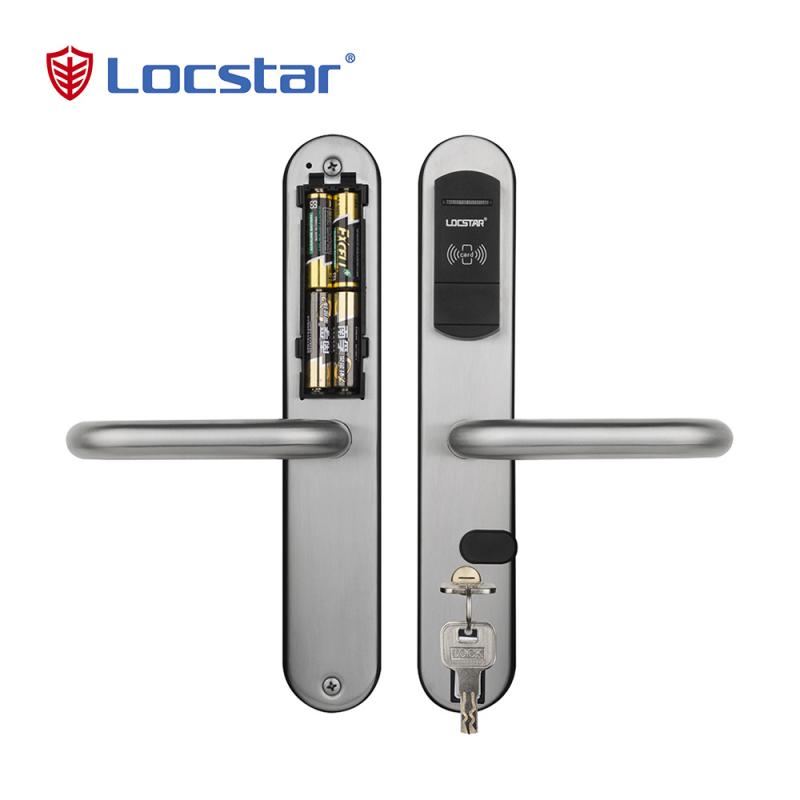

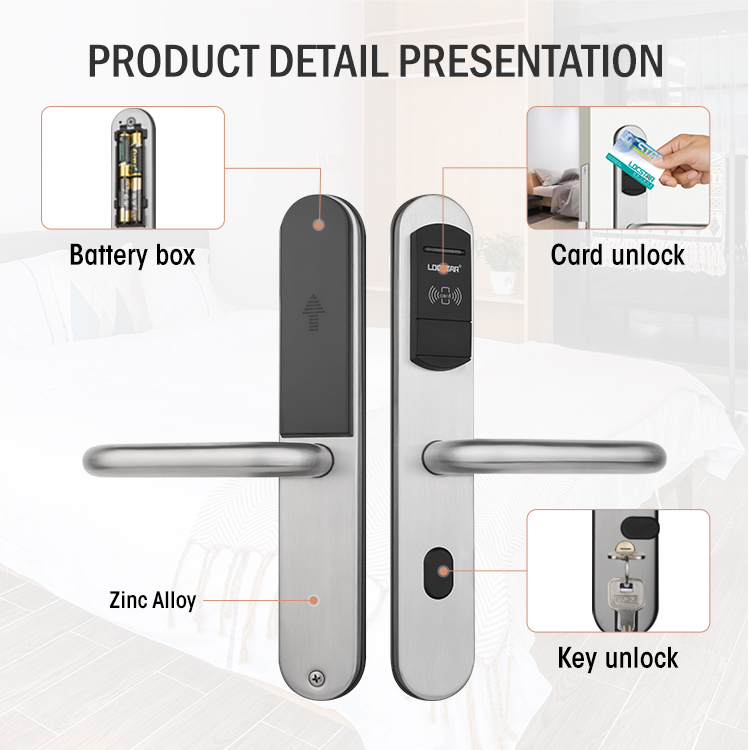

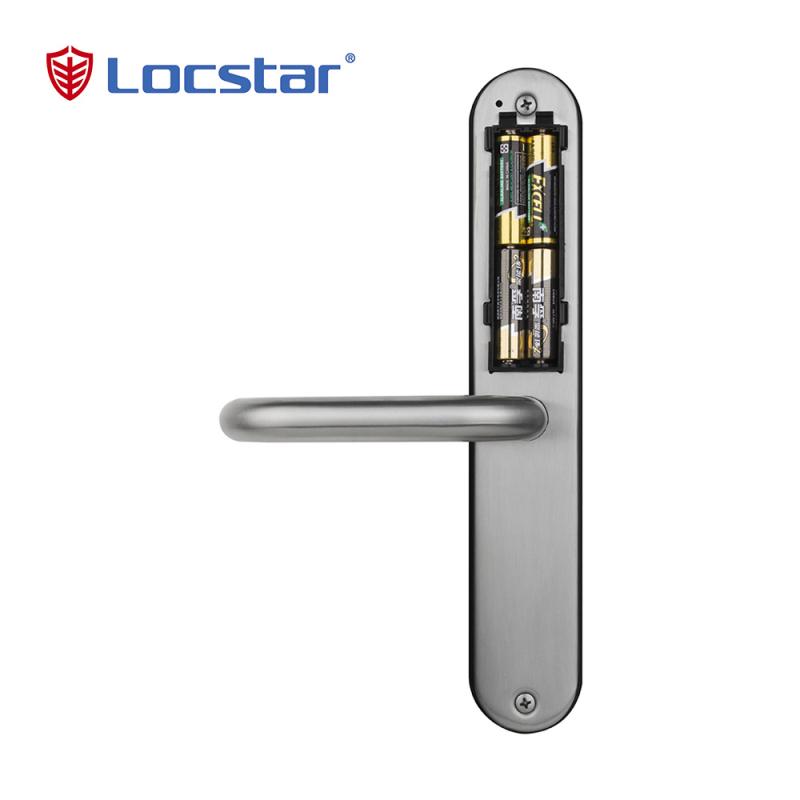

 4. Powered by 4pcs AA Alkaline battery

 5. Battery life: approx 1 year

 6. Low voltage alarm

 7. Door ajar alert

 8. DND (Do not disturb) function available

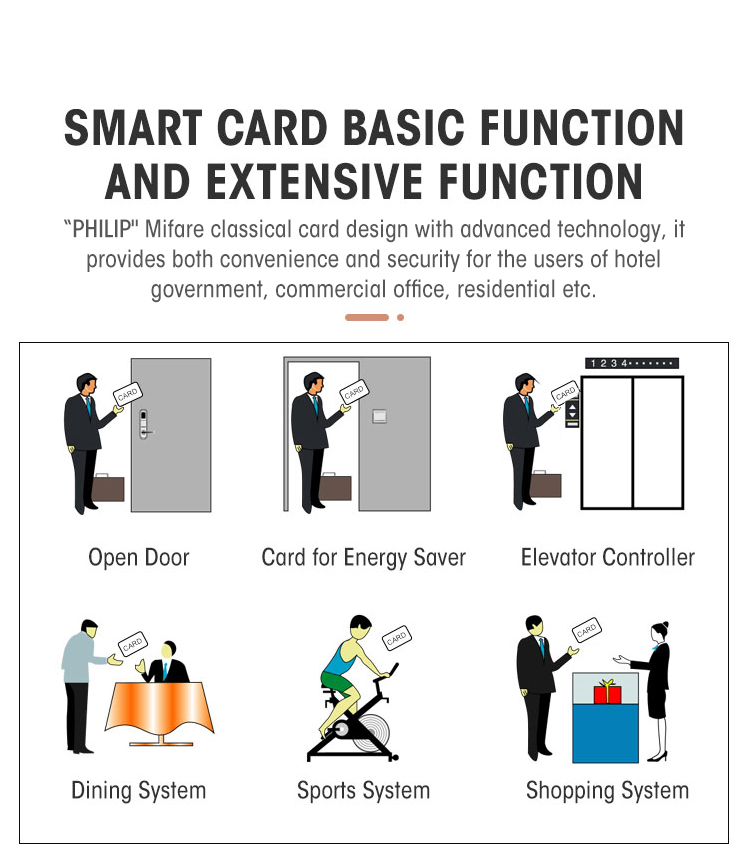

 9. Management classification: support 14 types of cards including authorization card, clock card, room number setting card, master card, emergency card, floor card, building card, guest card, temporary card, house keeping card, alarm card, no-disturbing card etc

 10. Hidden cylinder

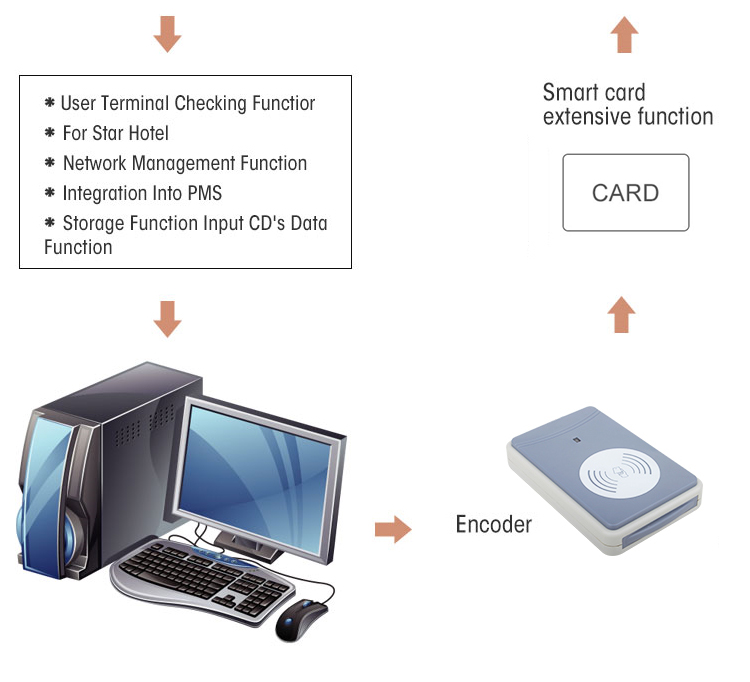

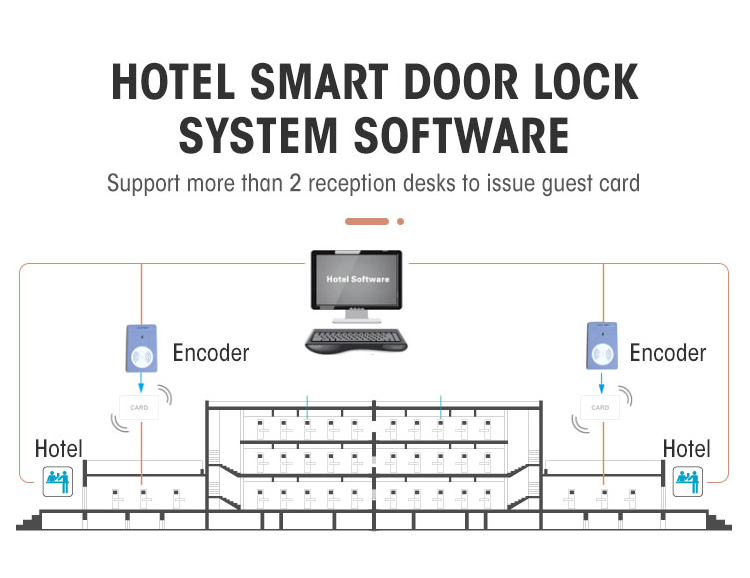

 11. Hotel locking system includes: hotel locking software, encoder, RF card, energy saving switch, data collector

 12. Warranty: 2 years, lifetime maintenance

 13. Hotel software interface with other PMS (API / SDK can be provided)

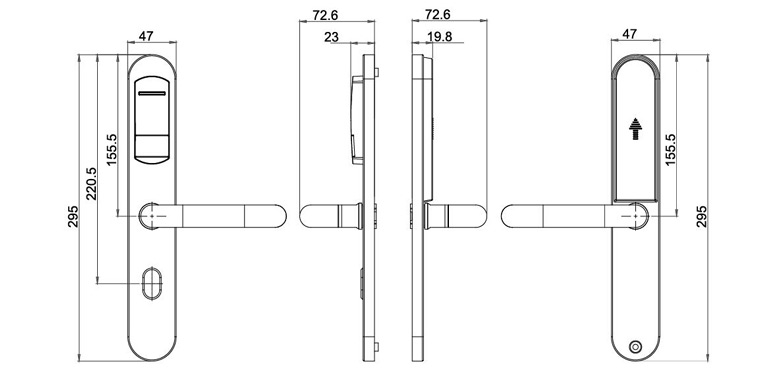

 14. Panel size:W295*H47*D72.6mm

Hotel locks with ERUO mortise


LS-8103 Euro standard mortise hotel door locks technical parameter:



Lock type

RF card lock

Card frequency

Mifare One S50 card

Reading Distance

2CM

Power Supply

4×AA

Low―voltage Index

4.8V(±0.2)

Battery life

 ≥10000times

Mechanical life

≥100000times

Reliability

≥30000times

Mechanical life

≥100000times

Static current

≤20uA

Dynamic current

<200mA

Working temperature

-20~55

Storage temperature

-30 ~ 70

Working humidity

15%RH ~ 93%RH

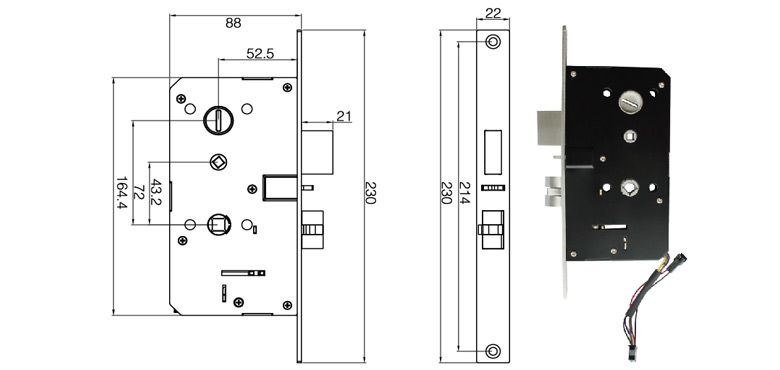

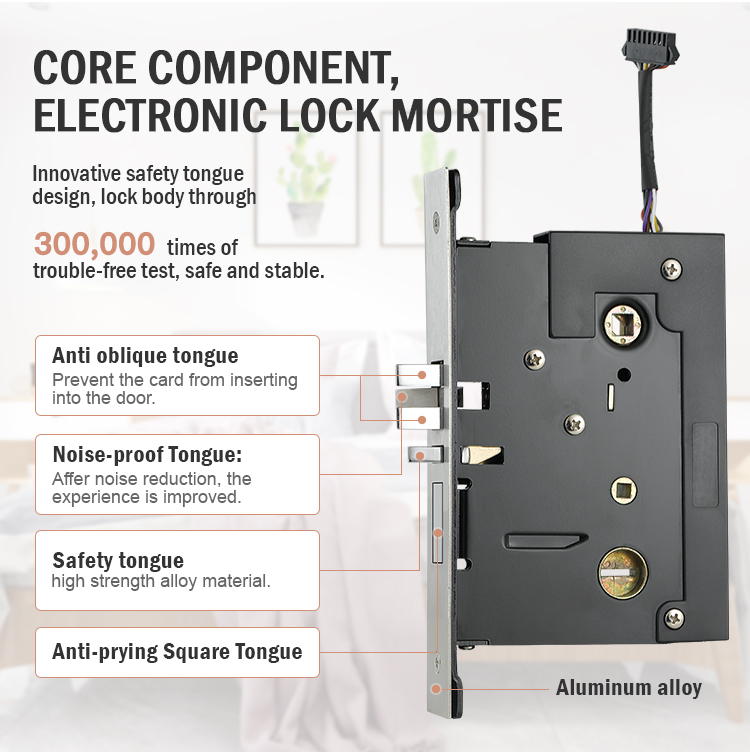

Mortise:


1. 9# Euro standard


European standard mortise lock



Packing:

 Each piece packed in white box
 6PCS/CTN
 17~19kg/CTN
 Carton size: L410 x W340 x H510 (mm)
 Volumes: 0.07 m3 / ctn
