Electronic Digital Door Lock

Hotel Lock

Security temic rf card hotel wireless locks

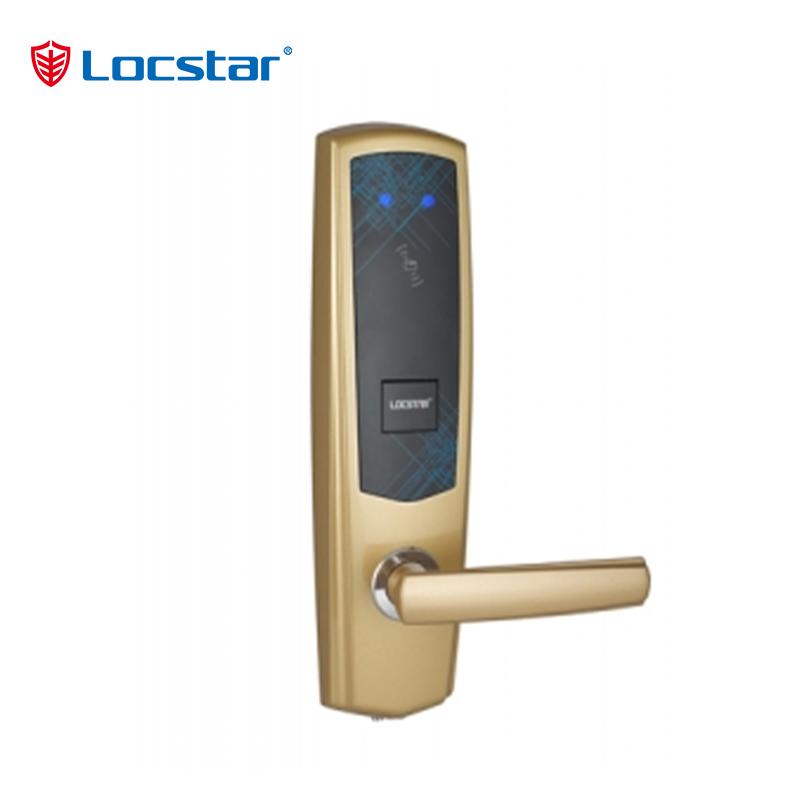

LS-8068 luxury classic Mifare card door lock  is versatile application,security,low maintenance.
  • ITEM NO:

    LS-8068-RFID
  • Unlocking ways:

    RFID card +mechnical key
  • Material:

    Zinc alloy
  • Certificate:

    FCC,CE
  • Mortise:

    8#ANSI

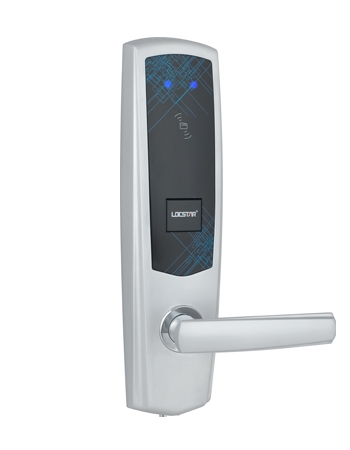

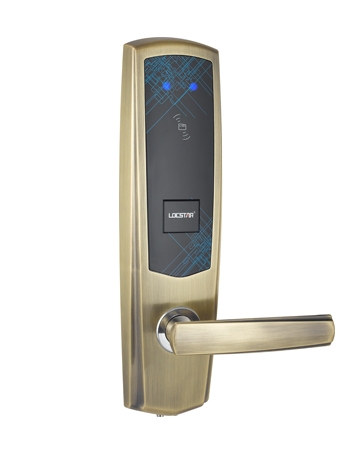

  • Color:

    Bronze, Silver , Golden
  • Warranty:

    2years
  • Payment term:

    T/T
  • product detail
  • technical parameters
  • other information
The temic card hotel electronic locks is a new developed hotel lock which is marketint to five star hotel,boutique hotel,For the sensor panel,the water transfer injection molding technology is applied,it will never fade.it's fashion and stong,and brings you safe and security.
 1. Unlocking by RFID card + mechanical key in emergency
 2. Support card type: Mifare S50 card, 13.56MHz
 3. Material: zinc alloy
 4. Powered by 4pcs AA Alkaline battery,external power poles design for emergency use of no battery
 5. Battery life: approx 1 year
 6. Low voltage alarm
 7. Door ajar alert
 8. DND (Do not disturb) function available
 9. Management classification: support 14 types of cards including authorization card, clock card, room number setting card, master card, emergency card, floor card, building card, guest card, temporary card, house keeping card, alarm card, no-disturbing card etc
 10. Hidden cylinder
 11. Hotel locking system includes: hotel locking software, encoder, RF card, energy saving switch, data collector
 12. Warranty: 2 years, lifetime maintenance
 13. Hotel software interface with other PMS (API / SDK can be provided)

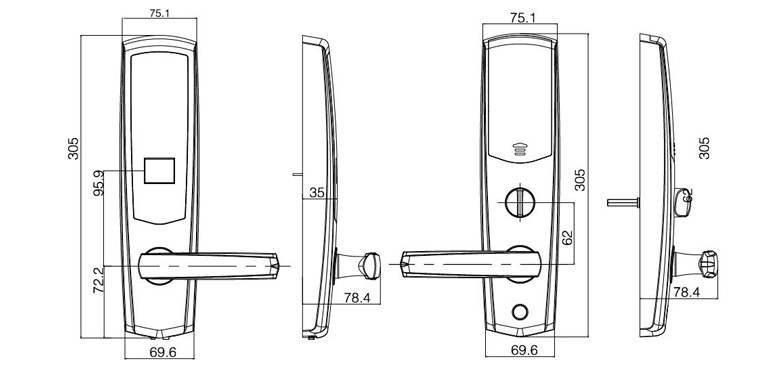

 14. Panel size:W75.1*H305*D69.6mm
Hotel lock with ANSI mortise

LS-8068 intelligent hotel door locks technical parameter:



Card type

RF ID card

Card frequency

Mifare One S50 card

Reading Distance

2CM

Power Supply

4×AA

Low―voltage Index

4.8V(±0.2)

Battery life

 ≥10000times

Mechanical life

≥100000times

Reliability

≥30000times

Mechanical life

≥100000times

Static current

≤20uA

Dynamic current

<200mA

Working temperature

-20~55

Storage temperature

-30 ~ 70

Working humidity

15%RH ~ 93%RH


Mortise:


1. 8# ANSI standard,five latch, deadbolt function, high security, change the battery from back panel. (it replaces Vingcard lock directly)






Packing:

 Each piece packed in white box
 6PCS/CTN
 17~19kg/CTN
 Carton size: L410 x W340 x H510 (mm)
 Volumes: 0.07 m3 / ctn
