TTlock App Swipe card door access controller system

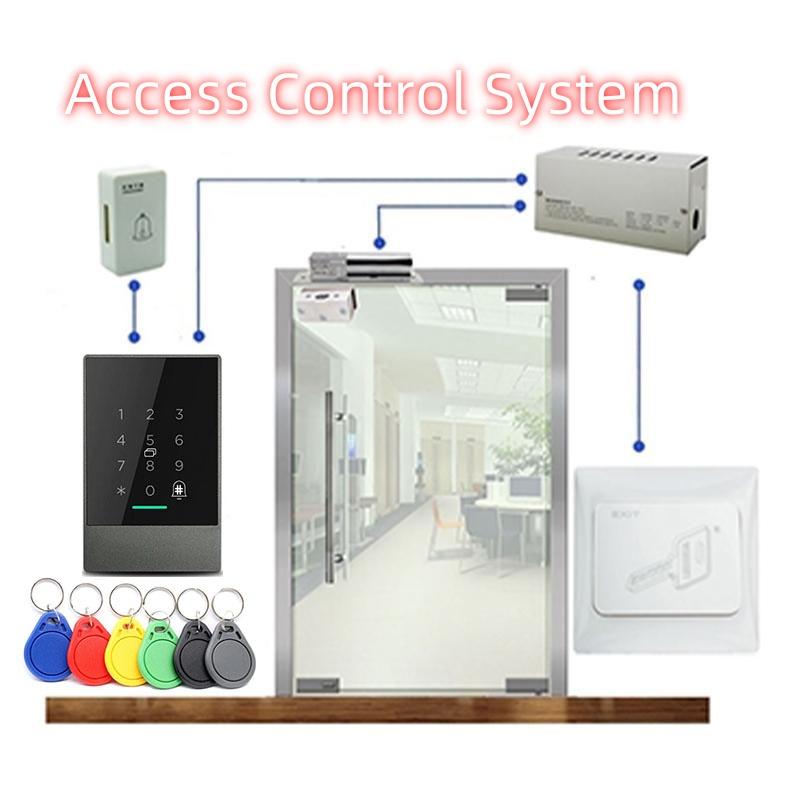

Full TTlock door access control system consists of access control reader, magnetic/electric lock, exit switch and power supply. Perfect for glass door, wooden door ,metal door, security door of hotel. The installation and program is very easy. This smart card door access control system kit set can connect to additional door bell too, if you need, please feel free to contact us.

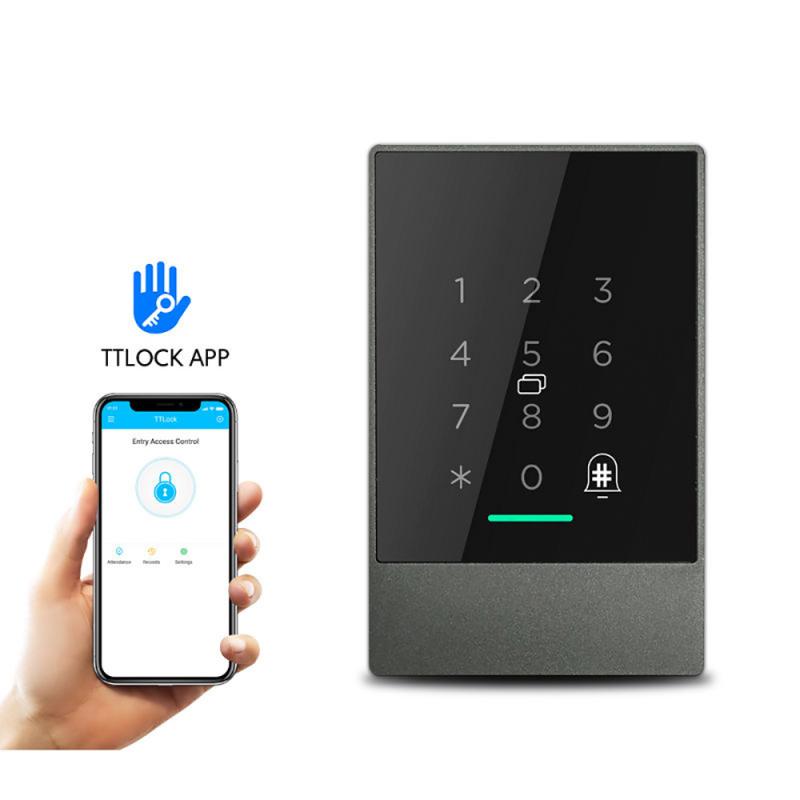

1. Contactless TTlock access control reader specification

With working led light, simple to install. Can work standalone, don't need to connect to computer. wall-mounting.

• Open mode: key card
• Reading Distance: ＜10CM

•  Working Frequency: 125KHz/13.56mhz

• Data saving time：permanent


• Unlocking Record: More than 30000 times

•  Working Voltage: DC12V

•  Working Temperature: -10 ℃~75℃

•  Antistatic: ＞15000V

•  Dimension: 105L*75W*20H(mm)

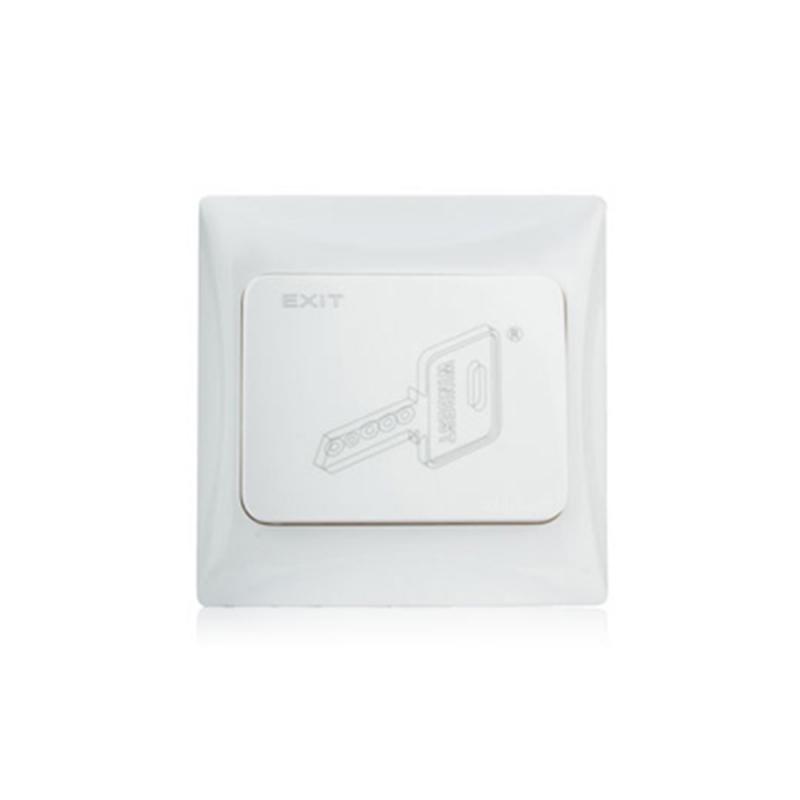

2. Exit Button specification

• Material: Hard Plastic

•  Faceplate Dimension: 85L*85W*4H(mm)

•  Maximum Power Rating: 36V DC 3A-5A output

•  Support both NC Mode(Fail Safe Mode) & NO Mode(Fail Secure Mode)

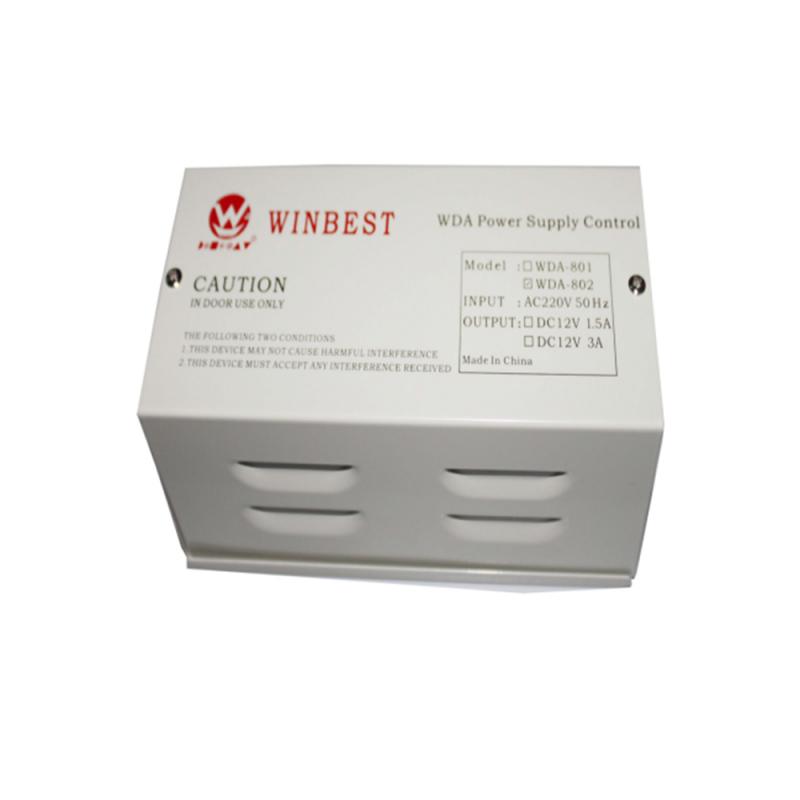

3.Power supply specification

•  Input Voltage: AC220V/50Hz

•  Output Voltage: DC14V/5A

•  Weight: 1.6Kg

•  External Dimension: 180*79*72mm

• Controls electric lock directly, Can reduce the load of access controller, save wiring to reduce the trouble

• With NC&NO function, can control various types of electric locks

• Based on delay control circuit, unlocking can be after 0-10 seconds

• When short circuit and other accidents occur, the power supply can be temporarily disconnected automatically or blow the fuse, which is with automatic protection function

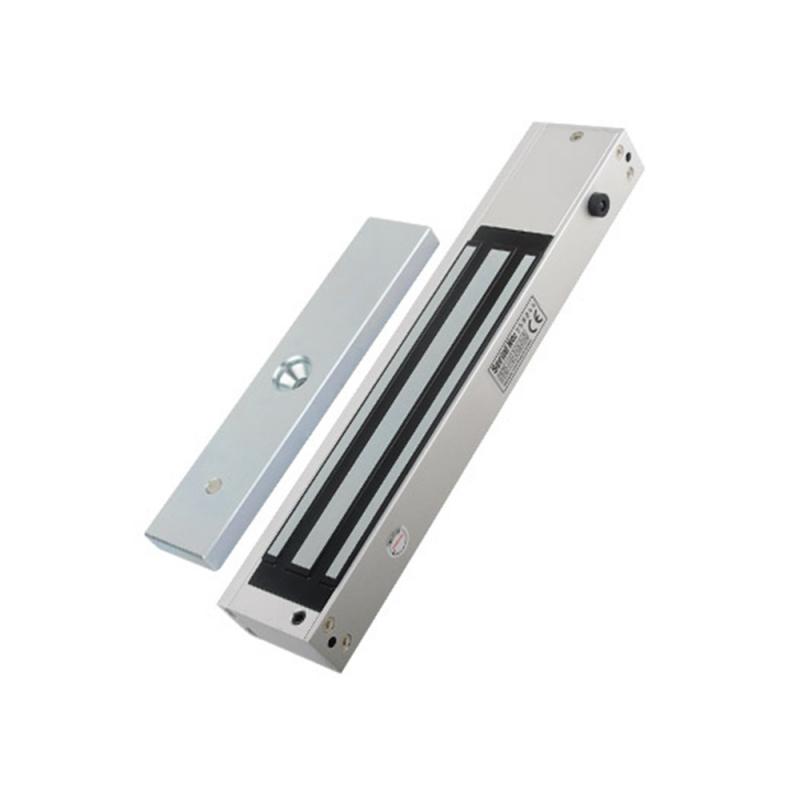

4. 280KG Magnetic Lock/Electric lock Specification:

Lock Size: 248Lx45Wx27H(mm)

Armature plate: 180Lx40Wx16H(mm)
