Electronic Digital Door Lock

Fingerprint Door Lock

Newest biometric fingerprint locks with door bell

Electromotive fingerprint cover Unlock the door just with your finger
  • ITEM NO:

    C20
  • Unlocking ways:

    Fingerprint+Code+Card+mechnical key
  • Material:

    Zinc alloy
  • Certificate:

    FCC,CE
  • Mortise:

    10# ANSI
  • Color:

    Black,Red,Light gold
  • Warranty:

    2years
  • Payment term:

    T/T,Western Union,Paypal
  • product detail
  • technical parameters
  • other information

Nano plating--swiss watches the same process,the shining is not for the moment but forever

Biometric semi--conductor fingerprint sensor-the Swedish FPC banking for the fingerprint sensor,132 international banks to witness the quality of application

Integrate sealed PCB--water proof,dust proof,shock proof and protect the electronic components properly

Easy to use--full voice guide,a single password intelligent management operation,convenient beyond your imagination

Intelligent protection system--spare mechanical key to open the door with automatic alarm function

         1. Zinc alloy semi-conductor biometric fingerprint lock for apartment /office wooden door or metal door.

         2. Unlocking by fingerprint + card + password + mechanical key in emergency

         3. User capacity: support 1 master code and 100pcs fingerprint user, 100pcs user card, 100pcs user code

         4. Swedish FPC semi-conductor fingerprint sensor, living dermis layer scanning

         5. Voice navigation and LCD display for easy operation

         6. Material: zinc alloy,  mortise material:SUS304 stainless steel

         7. Powered by 4pcs AA Alkaline battery

         8. Low voltage alarm

         9. Touch screen keypad, white backlight digits,convenient use in the evening

         10. ANSI standard mortise, free to change the direction.

         11. Reversible handle

         12. Lift up handle for double lock from outside

         13. External power pole in case out of power

         14. Override hidden cylinder

         15. Emergency power interface with micro USB port

         16. Standby wireless version,just insert the zwave module,the lock can be updated to be

               wireless zwave lock controlled by smart phone.

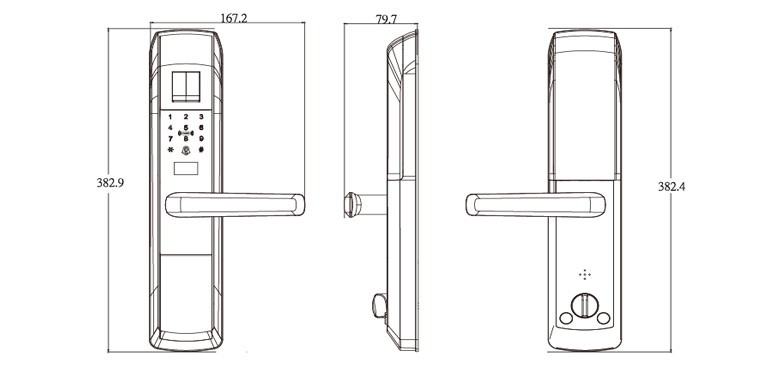

         17. Panel size:W167.2×H382.9×D79.7mm

        Korea fingerprint locks






C20 fingerprint door bell lock technical parameter:


Master code

1Group

Fingerprint capacity 100Pcs
User code capacity
100Pcs
Card capacity 100Pcs
Card type Mifare one S50
Card frequency 13.56MHZ
Reading distance 1.5CM
Reading time <1S

Power Supply

4×AA

Low―voltage Index

5.0V(±0.2)

Battery life

1 year

Resolution rate
500DPI
FRR ≤0.01%
Error rate ≤0.0001%

Static current

≤70uA

Dynamic current

<300mA

Working temperature

-20~55

Storage temperature

-30 ~ 70

Working humidity

15%RH ~ 93%RH




Mortise:

1.10#ANSI for security metal door,free to change the direction



2.10#ANSI for wooden door,free to change the direction



Packing:

     Each piece packed in white box

     3pcs/CTN

     19.2Kg/CTN

     Carton Size:L570 x W460 x H340 (mm)

     Volumes: 0.0891 m3 / ctn
